    C Profile Stud And Track Steel Drywall Roll Forming Machine C Channel Shape Purlin Making

    Ask Lasest Price
    Brand Name : ST
    Model Number : 30
    Certification : CE, ISO
    Price : contact the sales,she will give you the best offer
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 set per month
    Delivery Time : 30-40 work days
    • Product Details
    • Company Profile

    C Profile Stud And Track Steel Drywall Roll Forming Machine C Channel Shape Purlin Making

    metal stud and track tracks light steel keel roll forming machine

    1. Company information

    BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.

    We manufacture all kinds of cold roll forming machines, we main supply trapezoidal roof sheet roll forming machine, glazed tile roller machine, C&Z purlin Rolling Making mahcine and Light steel keel frame former Line.And it include Adjustable Roof Sheet Roll Forming Machine.

    2. Technical parameters:

    Raw material
    material specsheet, galvanized steel sheet, aluminum sheet
    thickness of coil sheet0.5-3mm
    Machine details
    roller materialHigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    shaft materialHigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft70mm
    forming steps16rows
    productivity25-30m/min
    hydraulic station power4KW
    hydraulic pressure10-12MPa
    controlling systemfamous PLC computer control
    material of cutting tableCr 12 mould steel with quenched treatment
    appearance size7500mm*1150mm*1510mm
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirements
    • Electronic control system

    Description


    • The machine used well-known brand PLC control technology. To realize the automatic machine
    • The system to provide friendly man-machine interface, It can be set batch, workpiece length and number, etc.
    • Encoder count, count and length with function.
    • PLC touch screen adopt domestic famous brands.

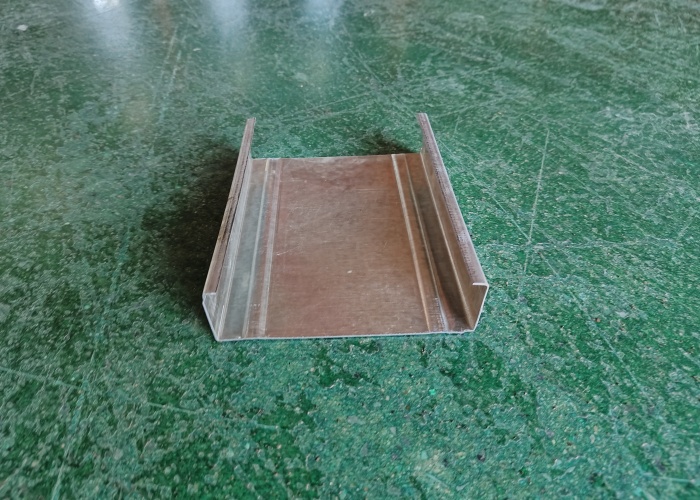

    3. Machine picture

    4. Installation and training:

    A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine,

    and also trainyour workers/technician face to face.

    B. Without visiting, we will send you user manual and video to teach you to install and operate.

    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and

    other necessary things.

    5. FAQ

    1.Q: Are you manufacturer or trading company?
    A: We are manufacture and trading company.
    2.Q:What info you need before you make the proposal?
    A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
    3.Q: what is the MOQ?
    A: One set
    4.Q: Do you provide installing and debugging overseas?
    A: Overseas machine install and worker training services are optional.
    5.Q: Can you make the machine according to my design or prototype?
    A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
