PLC 1250mm 0.3mm Sheet Metal Roll Forming Machines

    Buy cheap PLC 1250mm 0.3mm Sheet Metal Roll Forming Machines from wholesalers

    Buy cheap PLC 1250mm 0.3mm Sheet Metal Roll Forming Machines from wholesalers
    • Buy cheap PLC 1250mm 0.3mm Sheet Metal Roll Forming Machines from wholesalers
    • Buy cheap PLC 1250mm 0.3mm Sheet Metal Roll Forming Machines from wholesalers

    PLC 1250mm 0.3mm Sheet Metal Roll Forming Machines

    Ask Lasest Price
    Brand Name : ST
    Model Number : 1000
    Certification : ISO CE
    Price : contact us
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

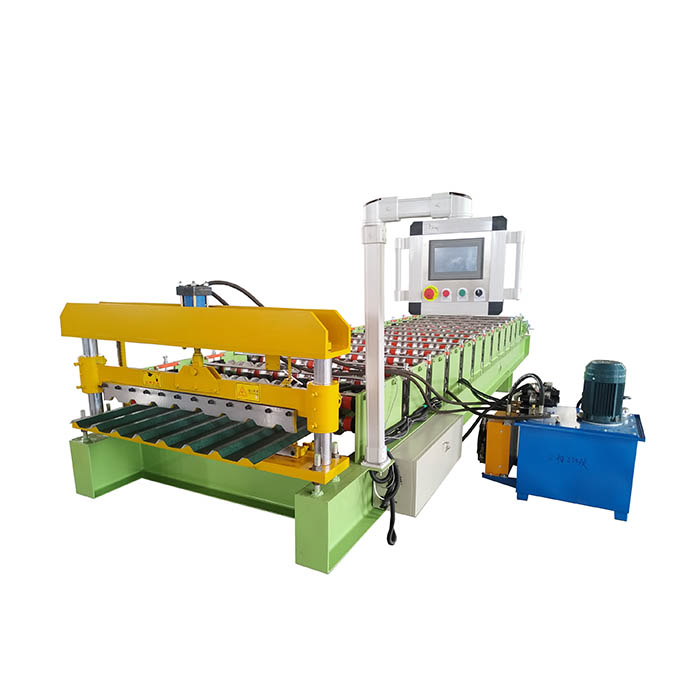

    PLC 1250mm 0.3mm Sheet Metal Roll Forming Machines

    Green IBR color steel roof panel Sheet Metal Roll Forming Machines


    Machine Application


    Our Galvanized Aluminium IBR Roof Sheet Roll Forming Making Machine can produce various of steel roof and wall panel, gutter system, shutter door etc. It is a new building material, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

    Main Advantages

    1) Young factory with advanced technology , and experienced Engineer , professional foreign trade team .

    2) Standard design for your choose from , custom design also acceptable .

    3) Adopt updated design and structure , making machine durable and better than always .

    4) Short delivery time , free trainning , free technical support for whole life .

    5) Futher research for local market , help client grow up and development .


    Machine Parameters

    NoItemParameter
    01Material feeding width1250mm
    02Material thickness0.3~0.8 mm
    03UncoilerManual Uncoiler
    04Loading weight5 ton
    05Forming speed20-25 m/min
    06Forming Steps13 stations
    07Shafts materials45# high quality steel
    08Shafts diameter70 mm
    09Roller materials45# high quality steel, hard chrome coated 0.05mm
    10TransmissionChains-sprockets
    11Main motor power4 kw
    12Cutting bladeCr12 with quenched treatment 60-62
    13Hydraulic power4 kw
    14This machine will automatically measure and cut the length and quantity as per clients set on the PLC touch screen
    15Length cut Accuracy±1mm
    16PLC control systemDelta
    17Frequency converterTAIAN
    18ScreenTouchWin
    19Voltage380V/50HZ/3Phase
    20Total weightApprox 4 tons
    21Overall dimensions

    6500x1500x1500mm


    Equipment composition:


    Artificial decoiler, roll forming machine, computer control system, hydraulic control system, cutting

    Our products are widely used in the manufacture of various industrial factories, civil buildings, warehouses and Yigang buildings, and are beautiful and durable.


    PACKAGE:

    LCL Loading Packaging: Steel pallet and plywood case.

    ——FCL Loading Packaging: Steel pallet with plastic film.

    Our Service:

    - Provide Pre-sales Consultant & On-purchase service 8 hr × 6 days per week

    - Reply within 24 hours

    - Provide relevant product information

    - Answer questions if request

    - Give technical suggestion

    ² Provide After-sales service 24hr × 7days per week

    - Test the machine before shipment

    - Provide technical guidance relate to use the machine

    - Supply one-year warranty period for the machine

    - Provide the spare parts at cost price after warranty period

    - Collect the feedback for the machine working
