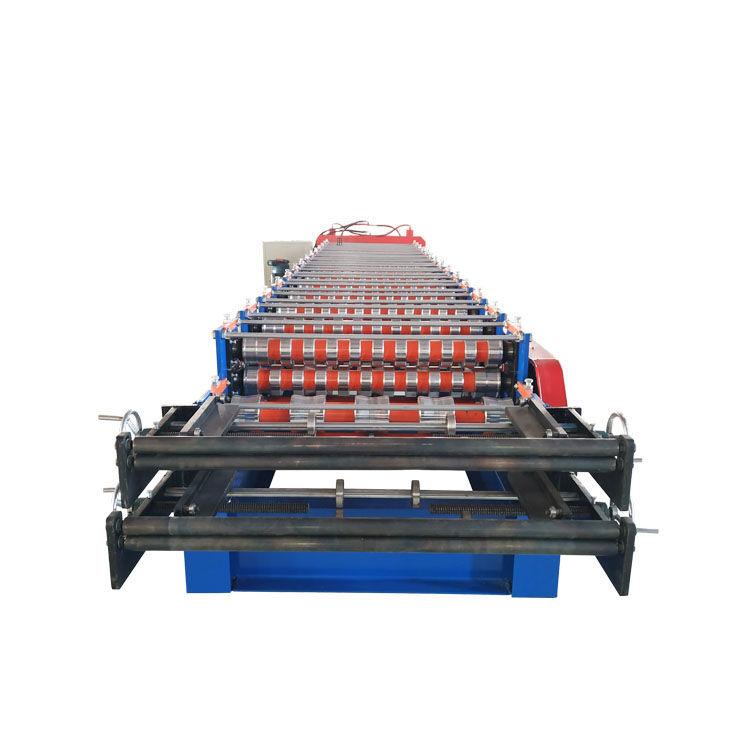

    Roofing Sheet Wall Panel Double Layer Roll Forming Machine Ibr And Corrugated Panel

    Ask Lasest Price
    Brand Name : ST
    Model Number : 762-760
    Certification : CE ISO
    Price : contact us
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20sets per month
    Delivery Time : 40days after get first desposit
    • Product Details
    • Company Profile

    Roofing Sheet Wall Panel Double Layer Roll Forming Machine Ibr And Corrugated Panel

    Roofing Sheet Wall Panel Double Layer Roll Forming Machine IBR and Corrugated panel


    Parameter

    Raw material
    materialcolored steel sheet, galvanized steel sheet, aluminum sheet
    thickness of coil sheet0.2-0.8 mm
    material expand width940mm
    Efficiency width760mm/762mm
    Machine details
    roller materialhigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    shaft materialhigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft70mm or as your requirement
    main frame300 H steel
    forming steps

    Up layer: 14rows

    Down layer:15 stations

    productivity20-25m/min
    hydraulic station power5.5 KW
    hydraulic pressure10-12MPa
    appearance size8700mm*1550mm*1510mm
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirement
    Cut ModeHydraulic forming after cutting off
    Cutter materiaCr12 Heat Treatment
    Electronic control systemPLC, Touch Screen, Encoding counter
    ColorBlue, green or yellow or as your requirement
    Rolling material45# steel,roller surfaces polishing, hard plating

    Main pics:
