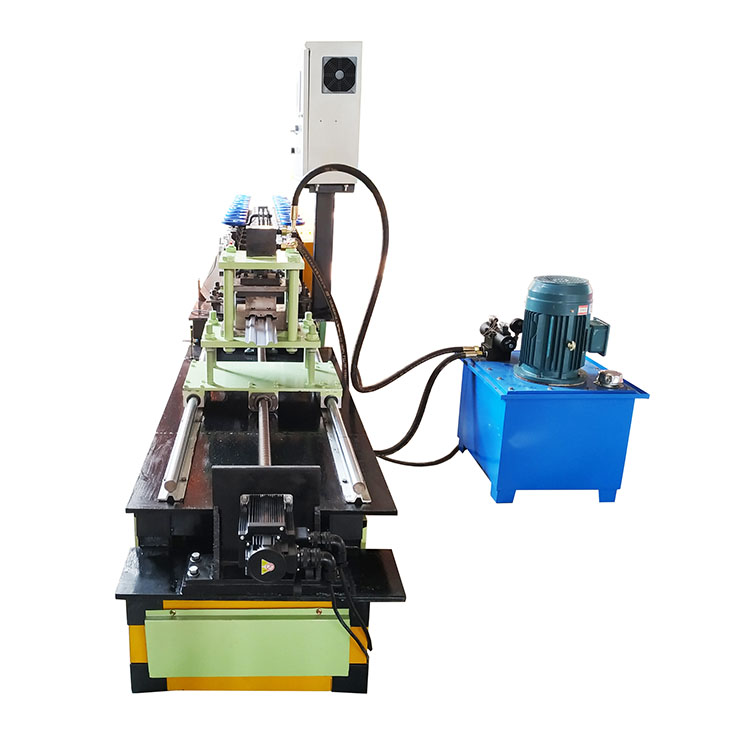

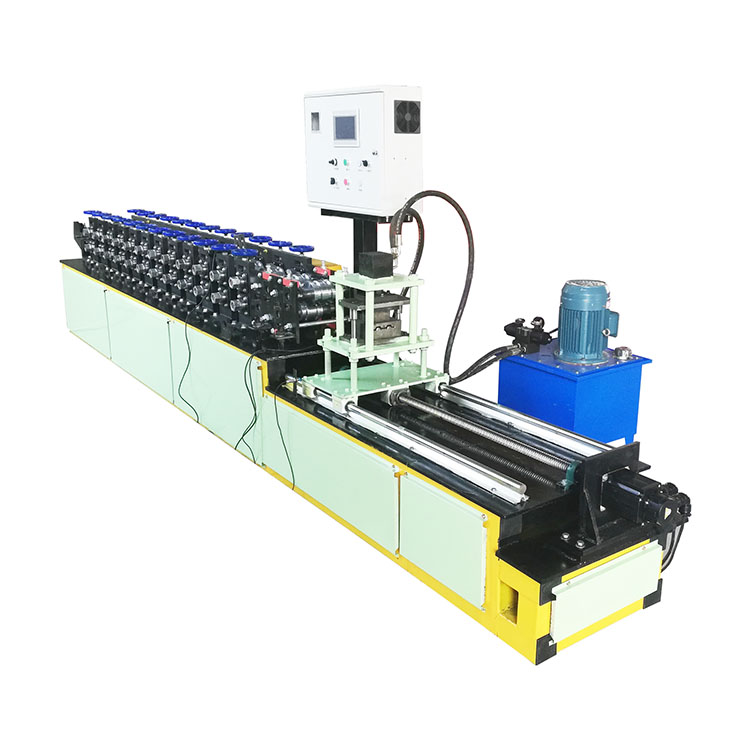

    Channel Fence Post Light Steel Keel Roll Forming Machine In Fence Panels

    Ask Lasest Price
    Brand Name : ST
    Certification : CE ISO9000
    Price : contact us
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : 38days
    • Product Details
    • Company Profile

    Channel Fence Post Light Steel Keel Roll Forming Machine In Fence Panels


    steel channel fence post roll forming machine fence panels rolling forming machine with high quality


    Parameter:

    Machine details
    roller materialhigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    shaft materialhigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft70mm or as your requirement
    forming steps12 stations
    productivity35-40m/min
    hydraulic pressure10-12MPa
    appearance size5700mm*1300mm*1500mm
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirement
    Cut ModeHydraulic forming after cutting off
    Cutter materiaCr12 Heat Treatment
    Electronic control systemPLC, Touch Screen, Encoding counter
    ColorBlue, green or yellow or as your requirement
    Rolling material45# steel,roller surfaces polishing, hard plating

    Device Configuration

    Manual decoiler1 set
    Guiding device1 set
    Main roll forming machine1 set
    Hydraulic cutting device1 set
    PLC electric control system1 set
    Hydraulic driving system1 set
    Special tools and parts1 set
