    Roof Ridge Tiles Building Materials Ridge Cap Roll Former Machine With Low Noise

    Ask Lasest Price
    Brand Name : ST
    Model Number : 420
    Certification : CE ISO9000
    Price : contact us
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20sets per month
    Delivery Time : 38days after desposit
    • Product Details
    • Company Profile

    Roof Ridge Tiles Building Materials Ridge Cap Roll Former Machine With Low Noise

    roof ridge tiles building materials machinery metal roof ridge cap roll forming machine


    Advantage:

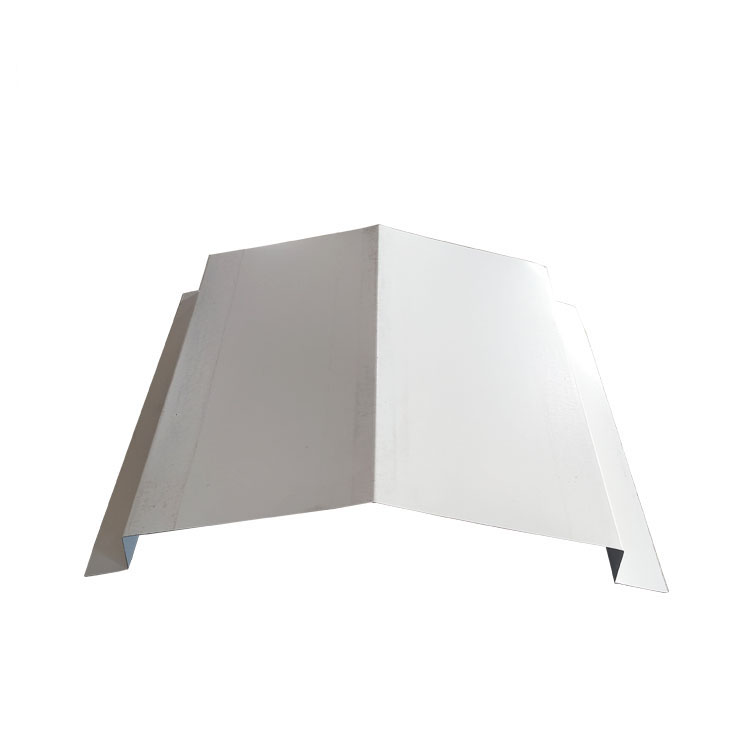

    - ridge tile forming machine is the machine to produce ridge caps for top part of roof, it is covered on the joint part of the two roofing sheet.
    - one is the details while manufacturing ridge tile forming machine. we always pay much more attention on processing details, even the screws and nuts are national standard with zinc plating, so that we can ensure the precise forming and durable quality.
    Machine specification

    NO.ItemSpecification
    1Processing materialPPGI,PPGL
    2Processing thickness0.3-0.8mm
    3.Coil width420mm
    4.Material of main frame300H steel
    5.Diameter of Soild shaft70mm, high grade 45# steel
    6.Roller

    Quenched and tempered treatment,
    hard chrome coated 0.05-0.07mm

    7.Thickness of middle plate16mm
    8.Forming station14 station
    9.TransmissionBy chain(1.0 inch) link bearing
    10Power of main motor4kw with Cycloidal reducer
    11Power of pump station4kw
    12Forming speedabout 10-15m/min
    13Hydraulic cuttingControlled by PLC
    14PLCDELTA(TAIWAN)
    15Material of razor bladesCr 12, quenching 58-62℃
    16Frequency converter

    It has the advantage of slowing down before cutting, to ensure the
    length accuracy(±1mm, far better than industrial standard ±3mm).


    Main pics:
