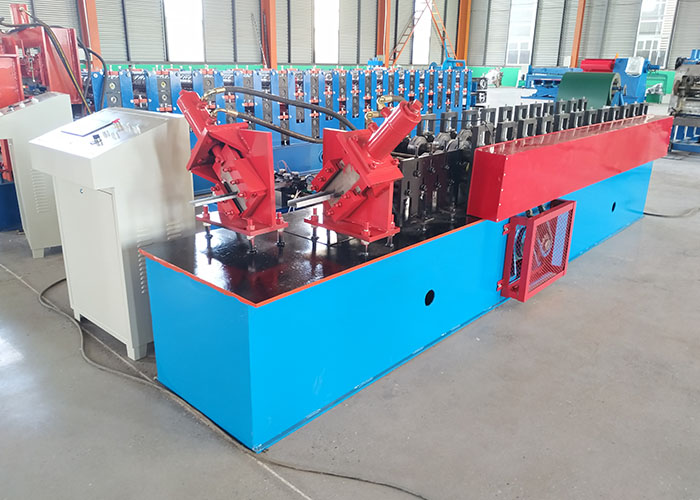

Steel frame light keel roll forming machine with hydraulic punching
system
1. Steel frame light keel roll forming machine with hydraulic
punching system
--- Automatically PLC control system let machine can forming and
punching according to client requirement.
--- Our engineer design the rollers according to customer's demand.
--- This machine huge saved customer's working space and human
cost.
--- The finally products use for steel construction frames.
2. Galvanized steel C shape steel keel roll forming machine with
hydraulic punching system parameters
| parameters |
| Production Capacity | 8-12 m/min |
| Power(W) | 4+4KW |
| Voltage | 380V 50Hz 3phases |
| Dimension(L*W*H) | 5600*800*1500mm |
| Weight | 2 .5 T |
| Suitable material | Colored Steel plate, galvanized board, Aluminum plate |
| Width of the raw material | 150-300 mm |
| Rows of rollers | 12 rows |
| Material of roller | High grade 45# steel(plated chrome on surface) |
| Thickness of raw material | 0.3-0.8 mm |
| Certification | ISO |
| Tile Type | Tile Cutting Machine |
| Machine Components |
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is
a professional manufacturer and exporter that are concerned with
the design, development and manufactur of cold roll forming
machines. We have high quality professional teams, skillful
talents, strong technical force, strong and independent research
and development capabilities, advanced production equipment and a
perfect after-sales service system.
The company is specialized in manufacturing Color steel forming
machinery, C and Z purling machine, Glazed tile forming machine,
steel structural floor panel roll forming machine, sandwich panel
roll forming machine, highway guardrail forming machine, downspout
forming machine, car panel roll forming machine, roll shutter door
roll forming machine, sheet slitting equipment, and other equipment
accessories.
4. Comapny advantage:
Pre-sale Service
1. Send you invitation letter, If you wanna visit our factory and
check the machines.
2. Good Quality Manufacturer competitive price Quick Response
Reliable Service for you.
Selling Service
1. Short delivery time after deposit 30-40 days.
2. Email you the production schedule and make prompt delivery for
you.
3. We will count the cheapest shipping cost and fastest forwarder
for you and send documents promptly.
4. Always be here for your service 12 hours per day.
After-sale Service
1. We welcome all feedback about our products and prices and
services from our customers.
2. Any questions, please contact with us freely by E-mail or
Telephone.
5. FAQ
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can
produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled
technicians available across the world.We needyour machines running
in order to keep your business running.
3. How to visit your company?
A. Fly to Beijing airport: By high speed train From Beijing Nan to
Cangzhou Xi (1 hour), then we can pick up you.
B. Fly to Shanghai Airport: By high speed train From Shanghai
Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 24 months, if the broken parts
can't repair, we can send the new parts replace the broken parts
freelly, but you need pay the express cost yourself. If after
warranty period, we can through negotiationfor to solve the
problems, and we supply the technical support for the whole life of
the equipment.
5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich
experience in transport.
