    Color Glazed Tile Roll Forming Machine / Coated Steel Step Tile Roll Forming Machine

    Ask Lasest Price
    Brand Name : ST
    Model Number : 25-210-840
    Certification : CE ISO9000
    Price : contact us
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20sets per month
    Delivery Time : 45days after get first desposite
    • Product Details
    • Company Profile

    Color Glazed Tile Roll Forming Machine / Coated Steel Step Tile Roll Forming Machine


    color glazed coated steel roofing tile making machine step tile roll forming machine


    The finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.



    No.

    Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet
    1Profile Size25-210-840
    2Suitable Raw Material0.2-0.8mm, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request
    3Under Frame350 H-beam
    4Sidewall16mm
    5RollerHigh grade 45# steel, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keyway
    6Shaft70mm, solid, finish turning, cylindrical grinding, with keyway
    7Forming Stations11
    8PLCDELTA, TAIWAN
    9Main Motor5.5 kw
    10Hydraulic Pump station5.5 kw
    11Cutting bladeCr12Mov, quenching 58-62°, double oil cylinder
    12Oil paintNational standard grey
    13Computer screenDELTA, TAIWAN
    14Chain1inch

    FAQ:


    Q1. What are the main key points for selecting right machines?

    A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.

    Good quality is for long-term business cooperation.


    Q2. Can you provide service for roll forming machine?

    A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.


    Q3. Whats your standard trade terms ?

    A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.


    Q4. How about the after-sale service?

    A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.


    Q5. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?

    A6: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).

    2) Shanghai Hongqiao to Cangzhou West (4.5 hours)

    3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West

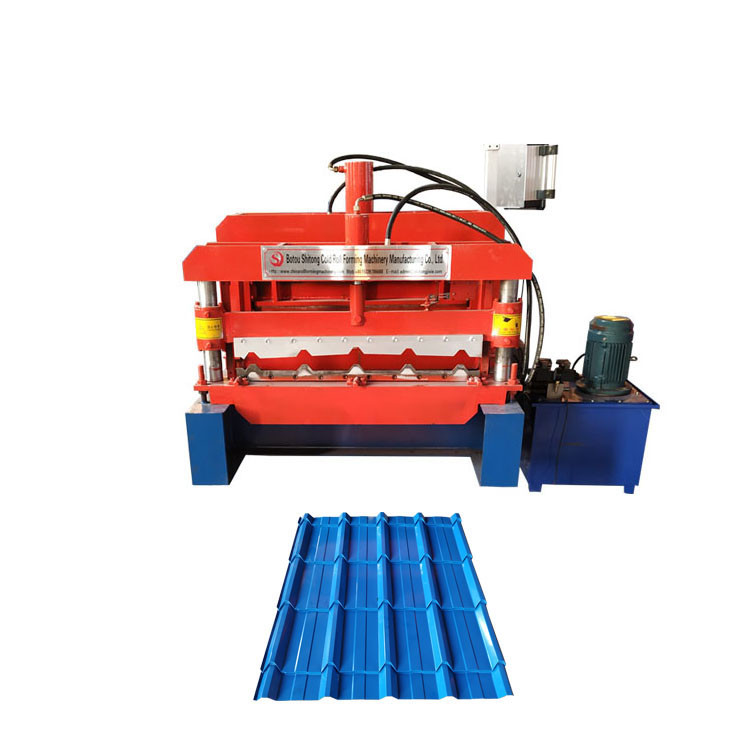

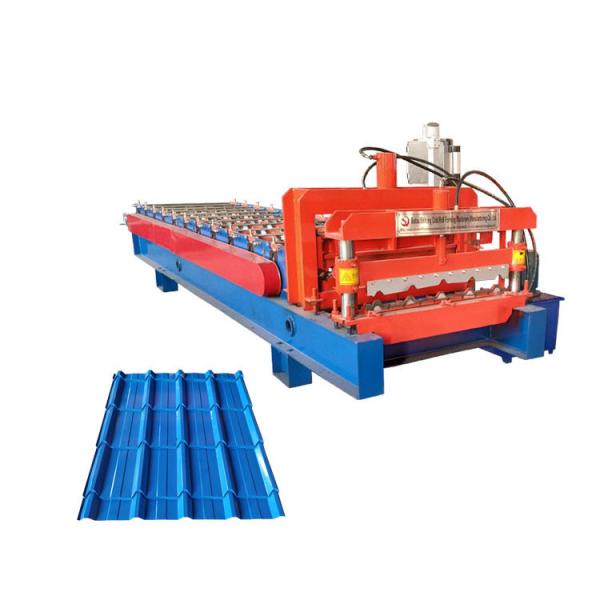

    Main pics:

    Color Glazed Tile Roll Forming Machine / Coated Steel Step Tile Roll Forming MachineColor Glazed Tile Roll Forming Machine / Coated Steel Step Tile Roll Forming Machine

    Color Glazed Tile Roll Forming Machine / Coated Steel Step Tile Roll Forming Machine
