Popular use corrugated steel roofing sheet roll forming machine for
wall and roof of house

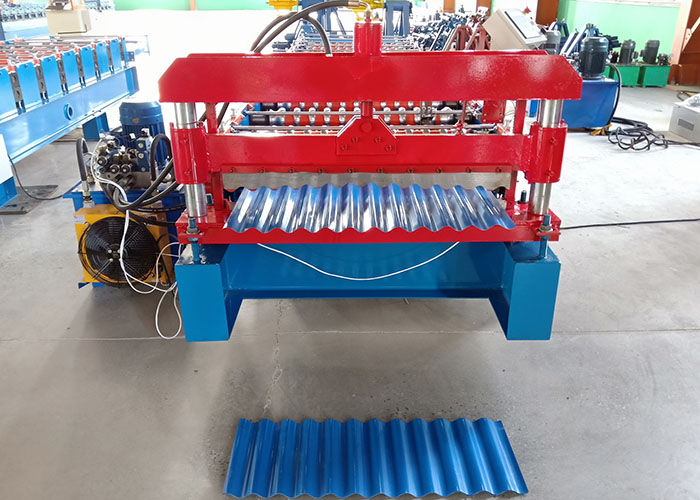

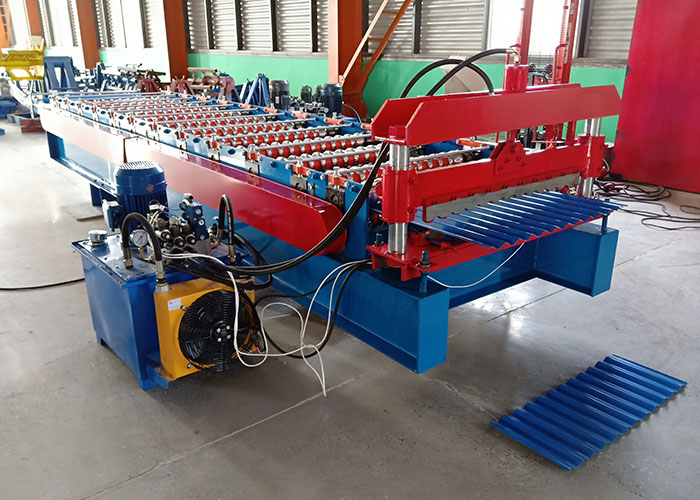

1. Popular use corrugated steel roofing sheet roll forming machine
for wall and roof of house
--- The sheet produced by this machine is used for roof or wall.
--- Customer can choose hydraulic drive or motor drive method, the
different is working speed.
--- Machine frame is high grade strength steel.
--- We also provide different brand electric parts for customer.
2. Popular use corrugated steel roofing sheet roll forming machine
for wall and roof of house parameters
| parameters |
| Production Capacity | 8-12 m/min or 15-20m/min |
| Power(W) | 4+4KW |
| Voltage | 380V 50Hz 3phases |
| Dimension(L*W*H) | 6500*800*1500mm |
| Weight | 3.5 T |
| Suitable material | Colored Steel plate, galvanized board, Aluminum plate |
| Width of the raw material | 1200 mm |
| Rows of rollers | 12 rows |
| Material of roller | High grade 45# steel(plated chrome on surface) |
| Thickness of raw material | 0.3-0.8 mm |
| Certification | ISO |
| Tile Type | Tile Cutting Machine |
| Machine Components |
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is
a professional manufacturer and exporter that are concerned with
the design, development and manufactur of cold roll forming
machines. We have high quality professional teams, skillful
talents, strong technical force, strong and independent research
and development capabilities, advanced production equipment and a
perfect after-sales service system.
The company is specialized in manufacturing Color steel forming
machinery, C and Z purling machine, Glazed tile forming machine,
steel structural floor panel roll forming machine, sandwich panel
roll forming machine, highway guardrail forming machine, downspout
forming machine, car panel roll forming machine, roll shutter door
roll forming machine, sheet slitting equipment, and other equipment
accessories.
4. Comapny advantage:
In Botou, we start the pressure roll forming machine export
business from 2008.
As a manufacturer we are specialized in all kinds of roll forming
machine, we are not machine supplier, we are a roll forming
solution provider.
Provide best price,good quality and fast delivery.
5. FAQ
Q1: What is the MOQ?
A: For roll forming machine,the MOQ is one set.
Q2: Could you design the machine for me?
A: Yes,we have professional team of engineers and are able to
design and product roll forming machine as your requestment. Or if
you have own drawings,we can design it as your drawings.
Q3: Are you trading company or factory?Can we visit your factory?
A: We have our own production line and factory.Warmly welcome to
our factory. Once we have your schedule, we will arrange the
professional sales team to follow up your case.
Q4: What's your after-sale service?
A: We'll provide engineer overseas service to help you install and
debug the machine,in addition,free replacement of parts in one year
warranty.
Q5: How is your Payment Term?
A: T/T,L/C ,Western Union
Q6: What’s your delivery time?
A: Normally it is about 45 days, but we will delivery as soon as
possible
