    Bamboo Glazed Roof Tile Roll Forming Machine Metal Steel Step Tile Making Machine

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 26-160-960-1200
    Certification : ISO,CE
    Price : Contact us
    Payment Terms : L/C,T/T
    Supply Ability : 12 sets/month
    Delivery Time : 48 working days
    • Product Details
    • Company Profile

    Bamboo Glazed Roof Tile Roll Forming Machine Metal Steel Step Tile Making Machine


    hydraulic bamboo glazed roof tile roll forming machine step tiles making machine


    Application:

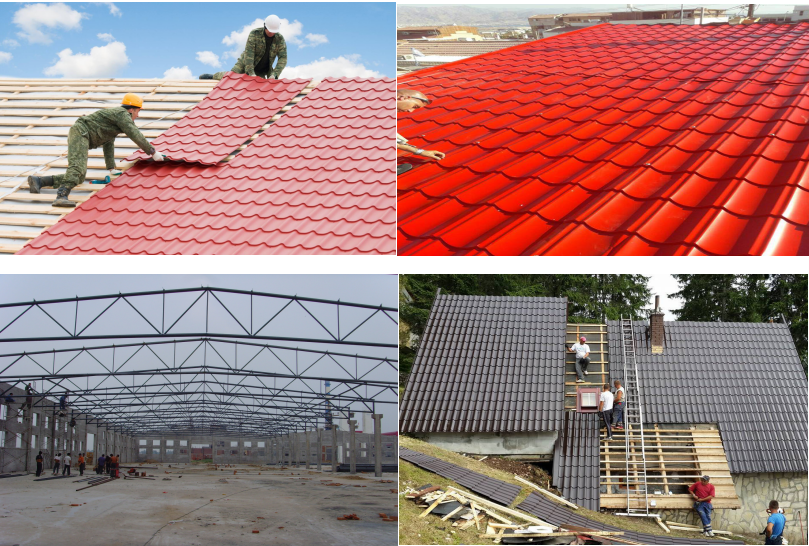

    The glazed tile roll forming machine products beautiful appearance of smooth, paint pattern uniform, high strength, durable, widely used in industrial and civil buildings, such as factories, warehouses, machine garages, hangars, stadiums, exhibition halls, theaters and other room surfaces and wall.


    Parameter:


    Raw material
    materialcolored steel sheet, galvanized steel sheet, aluminum sheet
    thickness of coil sheet0.2-0.8 mm
    material expand width1200mm
    Efficiency width960mm
    Machine details
    roller materialhigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    shaft materialhigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft70mm or as your requirement
    main frame300 H steel
    forming steps11 stations
    productivity3-4m/min
    hydraulic station power3.7 KW
    hydraulic pressure10-12MPa
    appearance size6200mm*1500mm*1500mm
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirement
    Cut ModeHydraulic forming after cutting off
    Cutter materiaCr12 Heat Treatment

    Advantage:


    1. Glazed tile roll forming machine use less power, saving energy consumption, reducing the cost of production

    2. High efficiency, energy saving, production speed, can be used continuously

    3. Small volume, light weight, mobile transportation is convenient, small footprint


    Pics of machine:


    Quality Bamboo Glazed Roof Tile Roll Forming Machine Metal Steel Step Tile Making Machine for sale
