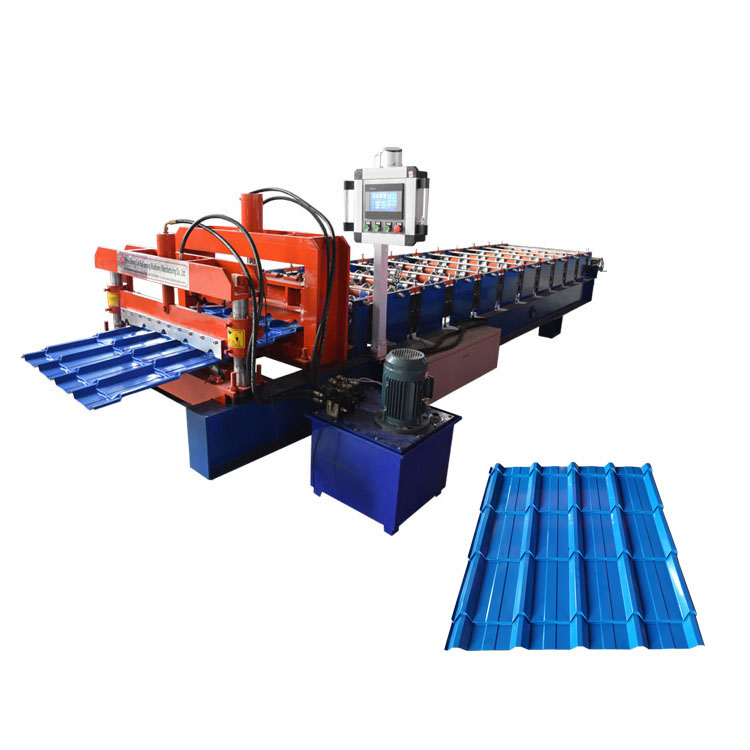

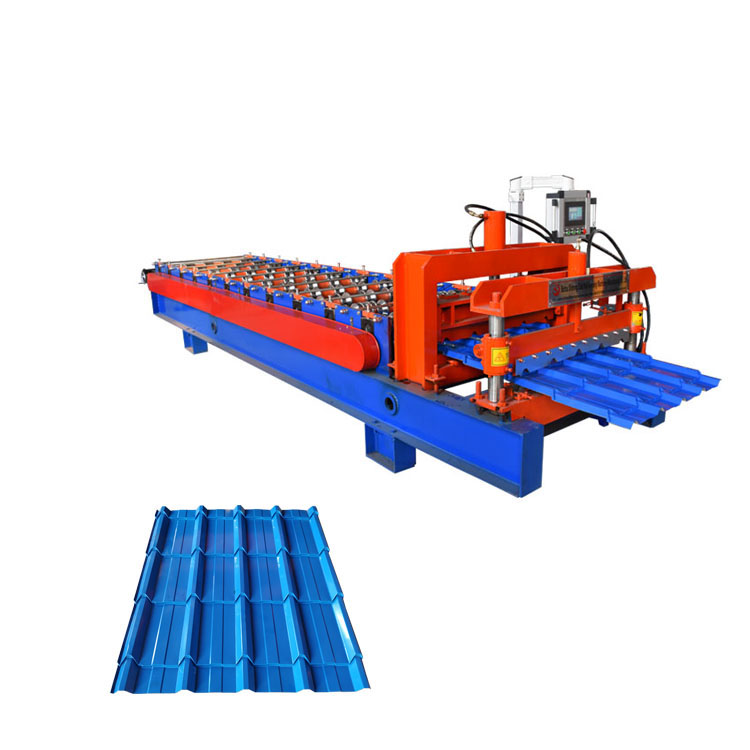

    CE Hydraulic Tile Making Machine Glazed Tile Forming Machine With 11 Rollers

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 25-210-840-100
    Certification : ISO,CE
    Price : Contact us
    Payment Terms : L/C,T/T
    Supply Ability : 12 sets/month
    Delivery Time : 48 working days
    • Product Details
    • Company Profile

    CE Hydraulic Tile Making Machine Glazed Tile Forming Machine With 11 Rollers

    aluminium roofing sheet making machine roof step tile roll forming machine glazed tile forming machine


    Parameter:


    Raw material
    materialcolored steel sheet, galvanized steel sheet, aluminum sheet
    thickness of coil sheet0.2-0.8 mm
    material expand width1000mm
    Efficiency width840mm
    Machine details
    roller materialhigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    shaft materialhigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft70mm or as your requirement
    main frame300 H steel
    forming steps11 stations
    productivity3-4m/min
    hydraulic station power3.7 KW
    hydraulic pressure10-12MPa
    appearance size6200mm*1500mm*1500mm
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirement
    Cut ModeHydraulic forming after cutting off
    Cutter materiaCr12 Heat Treatment
    Electronic control systemPLC, Touch Screen, Encoding counter
    ColorBlue, green or yellow or as your requirement
    Rolling material45# steel,roller surfaces polishing, hard plating

    FAQ


    1. Can you be responsible for transport?

    Yes, please tell me the destination port or address.we have rich experience in transport.


    2. You are Trade Company or factory?

    We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.


    3. Why your price is higher than others?

    As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.


    4. How long the machine could be made?

    Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.

    Detail Description


    Tension type decoiler


    ①Functional ConfigurationThe worker put coil on the manual decoiler, and tensioning it through spanner.
    ②technical parameters

    The maximum load capacity 5 Ton

    The coil inside diameter φ508mm

    Suitable coil width 1000mm

    Main machine system


    ①Roll forming system


    • Roll forming system consists of machine frame, drive disk assembly and cold bending rollers, ect.
    • The machine Section production and then splicing it
    • Cr12 Heat Treatment,roller surfaces polishing, hard plating .
    • Support structure in the form of roller shaft.
    • All motors use dedicated motor, has excellent mechanical properties.
    • Powered by a hydraulic motor system, it has small machine noise, and stable speed rapid prototyping.

    ②System for forming after cutting off


    • Adopting rolling forming then cut the sheet. No waste here, Cutting knife is made of the Cr12 after quenching.
    • Using combined frame type to cut the machine frame. The characteristics is good maintainability and easy to adjust.
    • Hydraulic stations offer the cutting power.

    ③Structural features


    • Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
    • Cut-off tool: Use of high strength wear thicker type mold, it is advantageous to avoid cutting off at deformation.
