    Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 20-200-1000-1200
    Certification : ISO,CE
    Price : Contact us
    Payment Terms : L/C,T/T
    Supply Ability : 12 sets/month
    Delivery Time : 48 working days
    • Product Details
    • Company Profile

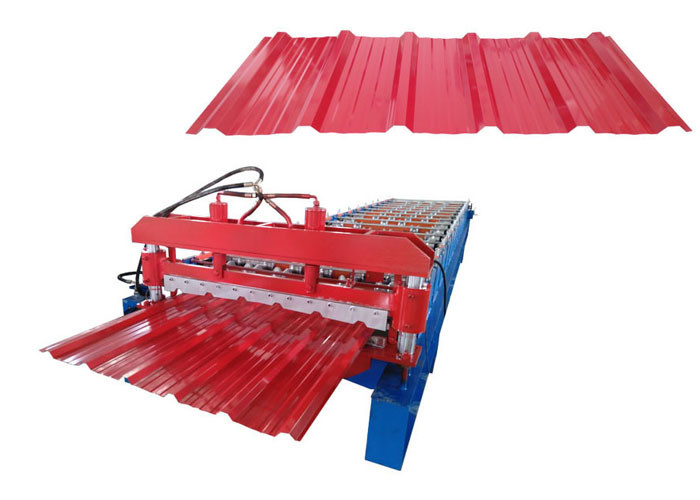

    Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process


    automatic trapezoidal PPGL wall and roof forming machine


    1.Warranty

    Two years, and we will provide technical support for wholelife of the equipment.

    After we receive the deposit, our designer will arrange the producing of the machine. After assembling, we will debug the machine and at the same time, we will make video for the clients and teach them how to operate the machine. Before shipping, the machine is tested in our factory. when the client gets the machine, he can according to our video to operate the machine. If some parts of machine broken within 2 years, we will give him the spare parts for free. If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect.

    If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.

    Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming ProcessTrapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming ProcessTrapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming ProcessTrapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process


    2. The roll forming machine details:


    coil width1200mm
    efficiency width1000mm
    Material Thickness0.3—0.7mm
    Rolling Speed10-15m/min
    Roller Stations16stations
    Roller material45# steel, coated with chrome
    Maim Motor Power7.5kw

    Hydraulic cutting Power

    4kw
    Material Of CuttingCR12 with quench treatment
    HardnessHRC58-62
    Tolerance+-2mm
    Electric Source

    380V, 50HZ,3 phases

    Also can satisfy customer’s require

    Control SystemPLC with touch screen
    Way Of Drive1.2 inches single chain

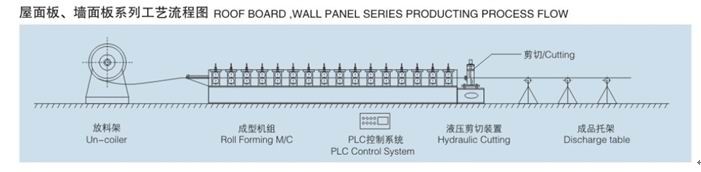

    3. Features of the roll forming machine production line

    manuel decoiler-feeding table-roll forming machine- cutting part-discharge table

    Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process



    4. FAQ

    Q1, If our country's voltage is different from yours, how to solve that?
    A1, The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
    Q2, We bought your roll forming machine line, but we couldn't install and debug it?
    A2, Don't worry about that, when finished the machine, we will send you the instruction book which shows you how to use the machine; if you still don't know, we can record a video to teach you how to operate the machine.


    5 company introduction:

    Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. was established in 2001. Our company is a comprehensive enterprise integrating production, sales and services. We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.

    We are one of the best roof and wall roll forming machine manufacturers and suppliers in China. We have established a long term business relationship with more than 26 countries. Such as South America, North America, Asia, Southeast Asia,Africa, Europe , Australia and Middle East.We are willing to promote the economic and technical exchanges with the world and establish trade relations with friends from all over the world. We firmly believe that a true partnership is built on the basis of customers’ satisfaction.
