300mm feeding width metal door frame roll forming machine by
customized size
1. 300mm feeding width metal door frame roll forming machine by
customized size
--- Our door fram roll forming machine can produce accuracy
profile.
--- Machine working stable and a long life time.
--- The machine control system is easy operate, machine maintenance
cost is low.
--- Advance surface treatment let machine have a beautiful
appearance.
--- We can design the machine produce any size customer want to
produce.
2. 300mm feeding width metal door frame roll forming machine by
customized size parameters
| parameters |
| Production Capacity | 15-20 m/min |
| Power(W) | 4+4KW |
| Voltage | 380V 50Hz 3phases |
| Dimension(L*W*H) | 6500*800*1500mm |
| Weight | 3.5 T |
| Suitable material | Colored Steel plate, galvanized board, Aluminum plate |
| Width of the raw material | 333 mm |
| Rows of rollers | 18 rows |
| Material of roller | High grade 45# steel(plated chrome on surface) |
| Thickness of raw material | 0.7-1.2 mm |
| Certification | ISO |
| Tile Type | Tile Cutting Machine |
| Machine Components |
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is
a professional manufacturer and exporter that are concerned with
the design, development and manufactur of cold roll forming
machines. We have high quality professional teams, skillful
talents, strong technical force, strong and independent research
and development capabilities, advanced production equipment and a
perfect after-sales service system.
The company is specialized in manufacturing Color steel forming
machinery, C and Z purling machine, Glazed tile forming machine,
steel structural floor panel roll forming machine, sandwich panel
roll forming machine, highway guardrail forming machine, downspout
forming machine, car panel roll forming machine, roll shutter door
roll forming machine, sheet slitting equipment, and other equipment
accessories.
4. Comapny advantage:
In Botou, we start the pressure roll forming machine export
business from 2008.
As a manufacturer we are specialized in all kinds of roll forming
machine, we are not machine supplier, we are a roll forming
solution provider.
Provide best price,good quality and fast delivery.
5. After-sale service of metal door frame roll forming machine
1. THe warranty of metal door frame roll forming machine is one
year after the client received the machine. With in one year, we
will courrier the replacement parts to client of free charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicans to install and train workers in
client's factory with extra cost.

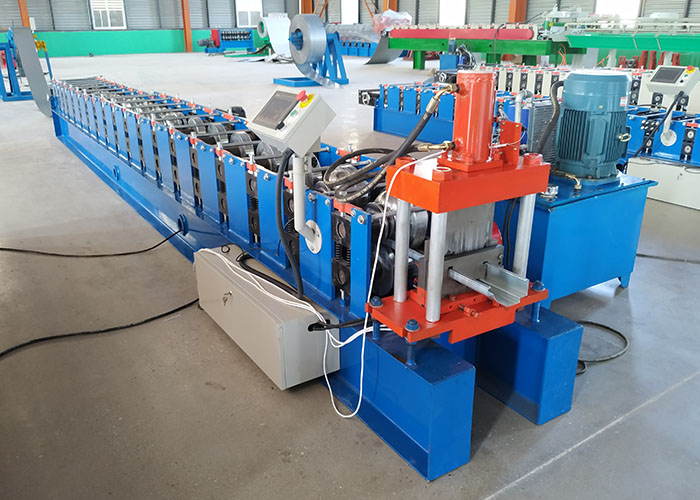

6. Roll forming machine pictures:
