    Customized Color Roofing Sheet Roll Forming Machine With 1mm Tolerance Encoder

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 20-200-1000
    Certification : ISO,CE
    Price : Contact us get the best price
    Payment Terms : L/C,T/T
    Supply Ability : 20sets/month
    Delivery Time : 40-60 days
    • Product Details
    • Company Profile

    Customized Color Roofing Sheet Roll Forming Machine With 1mm Tolerance Encoder

    8-12m/min working speed roofing sheet roll forming machine with 1mm tolorance enconder


    1. 8-12m/min working speed roofing sheet roll forming machine with 1mm tolorance enconder
    ---- More than 10 year export experience help us provide more exactly service for globe customer.
    ---- Quickly response with in 24 hours remove customer's worries.

    ---- High precision machines can help us get the high quality accessories.
    ---- CE certificate provide more guarantee to customer.


    2. 8-12m/min working speed roofing sheet roll forming machine with 1mm tolorance enconder parameters


    NoItemDescription
    1CoilWidth:925mm
    2Forming speed8-15 m/min (not including cutting time)
    3Roller Stations13stations
    4Material of Roller45# steel finish machining, plated hard
    5Material of Main Shaft45# steel finishing machining and then slack
    6Material of Shaft70 mm 45#steel forged
    7Driven Motor Power4KW
    8Hydraulic Station Power4 KW
    9Hydraulic Station Pressure12.0 Mpa
    10Electrical Control SystemTaida PLC
    11Dimension (L*W*H)8500mm*1050mm*1200mm
    12Material of CutterGCr12
    13Driving Modesingle chain 1 inch
    14Material Thickness0.3-0.8mm
    15Power Supply380V, 60HZ, 3 PHASES
    16Cutting accuracy±1mm

    Machine Components
    No.NameQTY
    1Manual uncoiler1 set
    2Feeding and leveling device1 set
    3Roll forming system1 set
    4Hydraulic punching and cutting1 set
    5Product support frame1 set
    6PLC Control System1 set

    3. roll forming machine company profiles

    Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


    The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

    4. Our service(about our roll forming machine)


    Pre-sale Service

    1. Send you invitation letter, If you wanna visit our factory and check the machines.

    2. Good Quality Manufacturer competitive price Quick Response Reliable Service for you.


    Selling Service

    1. Short delivery time after deposit 30-40 days.

    2. Email you the production schedule and make prompt delivery for you.

    3. We will count the cheapest shipping cost and fastest forwarder for you and send documents promptly.

    4. Always be here for your service 12 hours per day.


    After-sale Service

    1. We welcome all feedback about our products and prices and services from our customers.

    2. Any questions, please contact with us freely by E-mail or Telephone.

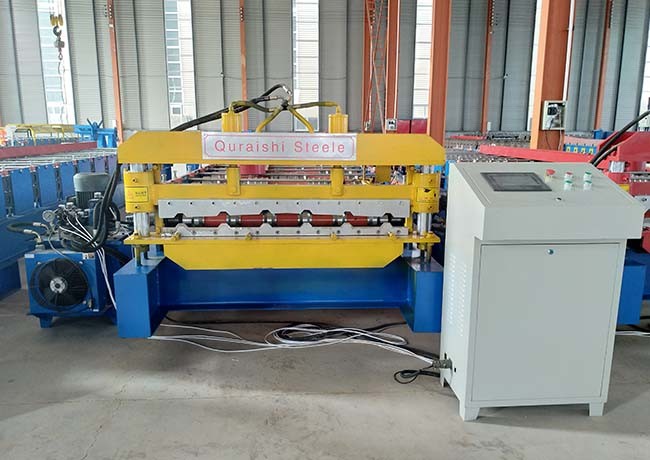

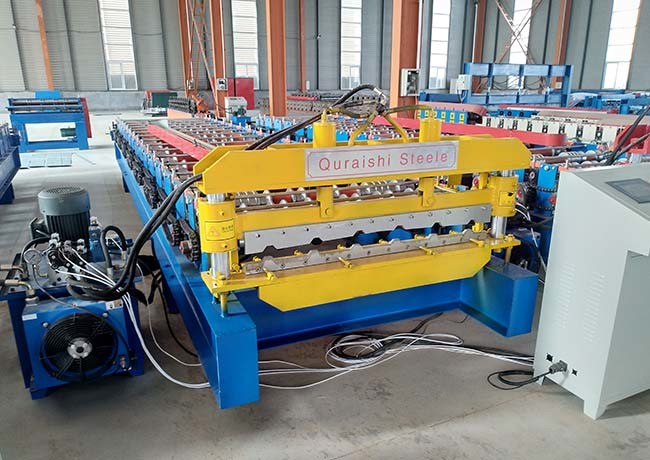

    5. Roll forming machine pictures:

    Customized Color Roofing Sheet Roll Forming Machine With 1mm Tolerance EncoderCustomized Color Roofing Sheet Roll Forming Machine With 1mm Tolerance EncoderCustomized Color Roofing Sheet Roll Forming Machine With 1mm Tolerance Encoder
