Iron Galvanized Steel Color Coated Sheet Making Machine Shaft Diameter 70 MM

    Buy cheap Iron Galvanized Steel Color Coated Sheet Making Machine Shaft Diameter 70 MM from wholesalers

    Buy cheap Iron Galvanized Steel Color Coated Sheet Making Machine Shaft Diameter 70 MM from wholesalers
    • Buy cheap Iron Galvanized Steel Color Coated Sheet Making Machine Shaft Diameter 70 MM from wholesalers
    • Buy cheap Iron Galvanized Steel Color Coated Sheet Making Machine Shaft Diameter 70 MM from wholesalers
    • Buy cheap Iron Galvanized Steel Color Coated Sheet Making Machine Shaft Diameter 70 MM from wholesalers

    Iron Galvanized Steel Color Coated Sheet Making Machine Shaft Diameter 70 MM

    Ask Lasest Price
    Brand Name : ST
    Model Number : 1000
    Certification : CE, ISO
    Price : contact the sales,she will give you the best offer
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 set per month
    Delivery Time : 30-40 work days
    • Product Details
    • Company Profile

    Iron Galvanized Steel Color Coated Sheet Making Machine Shaft Diameter 70 MM

    color iron galvanized steel ibr laminating roofing sheet metal roll forming machine

    1. Company information


    BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.
    We have high quality professional teams,skillful talents,strong technical force,strong and indenpendent reaserch and development capabilities,advanced production equipment and a perfect after-sales service system.We have great confidence in the quality and precision of our product.Our customers feedback said that it is a great machine,no noise,clean,very advanced technology ,and it also has the features of light sturcture and reasonable design.

    2. Technical parameters:


    configurationsmanual decoiler, main machine of roll forming, cutting device, output table, electric motor, PLC control system
    Materialprocessing materialColored Steel plate, Galvanized Board, Aluminum Plate
    thickness0.3mm-0.8mm
    Efficienty width1000mm
    Coil width1200mm
    Manual decoilerThe maximum load capacity:5 tonExpand by band
    The coil inside diameter:450-550mm
    Suitable Coil width:1250mm
    Main Forming machineForming steps13steps
    Shaft diameter70 mm
    Thick of arch frame16mm
    Frame bodyHigh strength steel pipe weld with color steel sheet cover
    roller material45# steel
    shaft material45# steel
    cutter materialCr12 mold steel with quenched treatment
    TransmissionBy 1” chain
    Work speed20-25m/min
    Hydraulic systemAutomatic hydraulic cutting after forming, without wasting.
    Control Device

    PLC control
    touch screen
    Program language: English/Chinese(or as required)

    Operating modeButton+touch screen
    Total power4 kw
    Main body colorBlue and orange(or as required)
    Voltage380v/50hz/3ph(or as required)

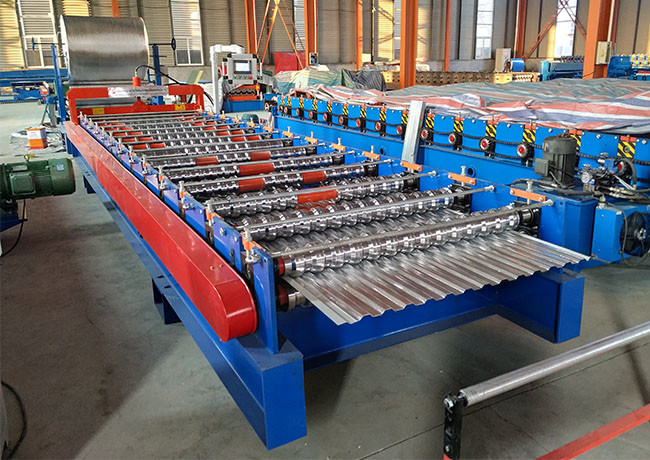

    3. Machine picture
    Iron Galvanized Steel Color Coated Sheet Making Machine Shaft Diameter 70 MMIron Galvanized Steel Color Coated Sheet Making Machine Shaft Diameter 70 MMIron Galvanized Steel Color Coated Sheet Making Machine Shaft Diameter 70 MM
    4. Installation and training:

    A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine,
    and also trainyour workers/technician face to face.
    B. Without visiting, we will send you user manual and video to teach you to install and operate.
    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

    5. After service
    A. One year guarantee for whole machine.
    B. 24 hours technical support by email or phone call.
    C. If there is any problem found of the machine, we will repair it for free in one year.


    6. The advantages of our service :used metal roof panel roll forming machine/building material machinery /portable roll forming machine

    1. Meeting clients’ diversified requirements on machines.


    2. High quality machine with reasonable price.


    3. Guaranteeing the quality of machine we providing.


    4. Every process will be checked by responsible QC which insures every product's quality.


    5. Professional packing teams which keep every packing safely.


    6. Trial order can be done in one week.


    7. Samples can be provided as your requirements.


    8. Compensating your losses because of unqualified machines from us….


    FAQ

    Q1: How can I contact salesman?
    A1: Please call 0086-13962271265 or send email to export at beatlestech.com.

    Q2: Can I have Beatles products catalog and price list?
    A2: Please visit our English website www.beatles.en.alibaba.com and send us email or inquiry for price.

    Q3: How long does it take to get the product if I place an order?
    A3: 30 Workdays After We Receive The 30% Advance Payment.

    Q4: How to make payment?
    A4: First send us an inquiry, and we will reply with our quotation. If our price suits you, we will prepare proforma invoice with our banking detail.

    Q5: Minimum order quantity?
    A5: MOQ is 1 set.

    Q6: What kind of terms of payment?
    A6: T/T, L/C, D/A, D/P, Western Union are available.

    Q7: What grams of products can you offer?
    A7: According to your requirements.

    Q8: Can you do customization & reproduction if I provide a photo?
    A8: Yes.
