High power fast speed PPGI roofing sheet roll forming machine with
gear box drive
1. High power fast speed PPGI roofing sheet roll forming machine
with gear box drive
---- Adpot Siemens motor and electric parts, ensure control and
power system have a suitable working situation.
---- All rollers have hard chormium plating, ensure roller's
working life.
---- All metal raw material are high strength, ensure machine have
a strong frame.
---- For the cutter, we use Cr12 matrial to make the blade.
2. High power fast speed PPGI roofing sheet roll forming machine
with gear box drive parameters
| Raw material |
| material | colored steel sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 0.3-0.8 mm |
| material expand width | 914mm/1000mm/1200mm/1220mm/1250mm |
| Efficiency width | 695mm/750mm/1000mm/1050mm |
| Machine details |
| roller material | high grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | high grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 70mm |
| main frame | 300 H steel |
| forming steps | 15 stations |
| productivity | 25m/min |
| hydraulic station power | 11 KW |
| hydraulic pressure | 10-12MPa |
| appearance size | 7700mm*1500mm*1500mm |
| hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirement |
| Cut Mode | Hydraulic forming after cutting off |
| Cutter materia | Cr12 Heat Treatment |
| Electronic control system | PLC, Touch Screen, Encoding counter |
| Color | Blue, green or yellow or as your requirement |
| Rolling material | 45# steel,roller surfaces polishing, hard plating |
| Service life | 10 years |
| Machine Components |
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is
a professional manufacturer and exporter that are concerned with
the design, development and manufactur of cold roll forming
machines. We have high quality professional teams, skillful
talents, strong technical force, strong and independent research
and development capabilities, advanced production equipment and a
perfect after-sales service system.
The company is specialized in manufacturing Color steel forming
machinery, C and Z purling machine, Glazed tile forming machine,
steel structural floor panel roll forming machine, sandwich panel
roll forming machine, highway guardrail forming machine, downspout
forming machine, car panel roll forming machine, roll shutter door
roll forming machine, sheet slitting equipment, and other equipment
accessories.
4. FAQ (about our roll forming machine)
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can
produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled
technicians available across the world.We needyour machines running
in order to keep your business running.
3. How to visit your company?
A. Fly to Beijing airport: By high speed train From Beijing Nan to
Cangzhou Xi (1 hour), then we can pick up you.
B. Fly to Shanghai Airport: By high speed train From Shanghai
Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
4. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich
experience in transport.
5. Why your price is higher than others?
As we persist on that each factory should put quality at the first
place. We spend time and money on developing how to make machines
much more automatic, accurate and high quality. We can make sure
that our machine could use more than 20 years without any problem.
We can provide 2 years free quality assurance.
6. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without
45 working days. If you need machines in a hurry, we can make it
for you less than a month.

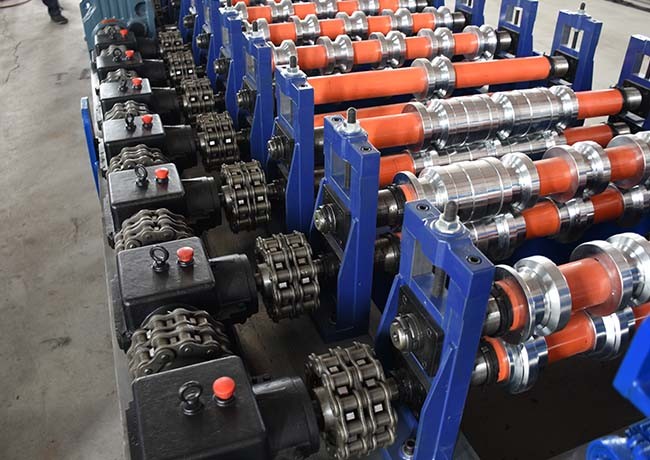

5. Roll forming machine pictures:
