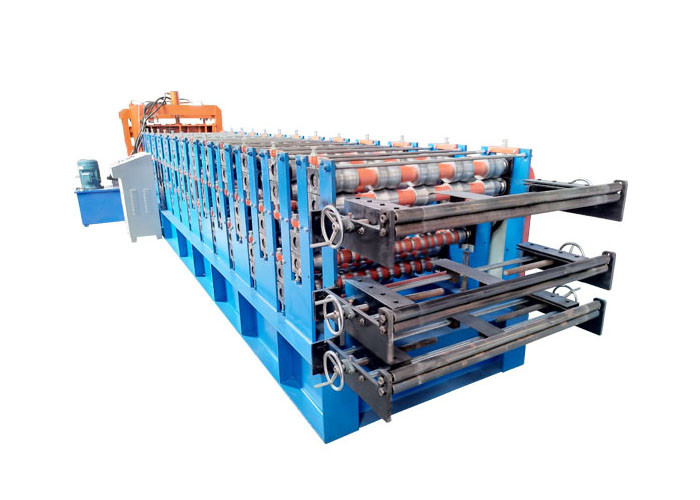

    Aluminum Tile Corrugated Roll Forming Machine , Three Layer IBR Sheet Making Machine

    Ask Lasest Price
    Brand Name : ST
    Model Number : 820-836-840
    Certification : CE ISO
    Price : contact me for good price
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Aluminum Tile Corrugated Roll Forming Machine , Three Layer IBR Sheet Making Machine

    three layer ibr and corrugated aluminum tile roof Sheet Metal Roll Forming Machines


    Production Process:


    Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving


    Technical parameters:


    Suitable MaterialMaterialGI, PPGI, PPGL
    Width1000 mm
    Thickness0.3-0.8mm
    Material of rollersHigh grade 45# forged steel, surface hard chromium plating
    Rows of rollers

    Up layer : 13 stations

    Middle layer : 12 stations

    Down layer : 12 stations

    Material of shaftsHigh grade 45# forged steel
    Diameter of shafts70mm
    Material of bladeCr12 Heat Treatment
    Cutting ModeHydraulic Guide Column
    Speed10-15m/min
    Side plate thickness16 mm
    Chain size1 inch
    Total power7.5 kw
    Voltage380V 50HZ 3Phase
    Appearance size (About)7000mm*1500mm*1600mm
    Weight(About)8 tons
    Electronic control systemPLC (Delta) Touch Screen

    Packing Method

    Main machine is packaged with plastic film

    Transportation

    All machines need one 40 feet container to hold

    Payment Term

    30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

    Delivery Time

    Within 45 days after receiving deposit.

    Warranty

    Two years, and we will provide technical support for wholelife of the equipment.

    If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.

    Aluminum Tile Corrugated Roll Forming Machine , Three Layer IBR Sheet Making MachineAluminum Tile Corrugated Roll Forming Machine , Three Layer IBR Sheet Making Machine
