    Building Material Roofing Sheet Roll Forming Machine With 10-15 Rows Roller Station

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : ST-840
    Certification : CE , ISO9001
    Price : Contact me
    Payment Terms : T/T, Western Union
    Supply Ability : 24 set per month
    Delivery Time : 29 working days
    • Product Details
    • Company Profile

    Building Material Roofing Sheet Roll Forming Machine With 10-15 Rows Roller Station

    Building material steel roofing seet matal roll forming machines for construction usage

    1. Brief introduction of this machine
    This machine takes GI/PPGI as raw material, through a series steps and can produce the metal roofing sheets.
    The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry. The general process flow as below: Decoiler--Manual prectting--Material Guiding--Roll forming M/C--Hydraulic System--Post Cutting--discharge Rack


    2. Specifications of the roll forming production line

    Modelroll forming machine
    Main motor power4 kw
    Hydraulic station power3 kw
    Hydraulic oil pumpCB-E310
    Shearing dieGr12
    SprocketP-25.4
    Transmission modechain
    The bearing capacity of manual decoiler5 tons

    Sprocket chain specifications0.6 inch
    Roller station10-15 rows
    Main frame structure350H steel
    Diameter of principal axis75mm
    Material of roller

    45#steel hard chrome
    Hardness HR55°—57°
    Solid shaft

    Processing speed10-15m/min
    Thickness0.2-0.7mm
    Feeding material width600mm-1250mm


    3. Our after sale service
    Our machines have one year guarantee, within one year, if the machine parts has some problem, we will be in charge of the repairing or replace. Also we will deliver the customer some spare parts together with the machine when loading the machine. If you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.

    4. The mian features of our machine
    The Advantages of Roll forming machine: solid shaft, PLC control, hydraulic system, fast production speed,long spanlife
    Can design the machine as your drawing,machine color do you favor.
    Delivery: Large capacity and Fast delivery,can accept third-party check before delivery
    Perfect after-sales service: Our engineer can teach you how to install and operate the machine at your place,all machine parts are available.
    The whole line including:uncoiler,roll forming machine,hydraulic station,hydraulic cutter,PLC control system, receiving table.

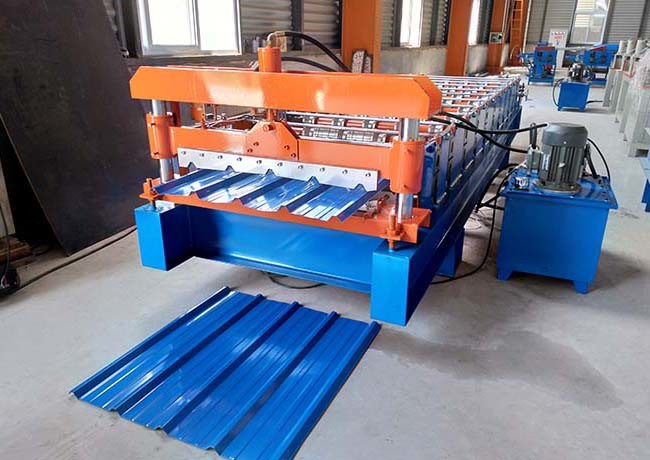

    5. Some machine pictures for your reference
    Building Material Roofing Sheet Roll Forming Machine With 10-15 Rows Roller StationBuilding Material Roofing Sheet Roll Forming Machine With 10-15 Rows Roller StationBuilding Material Roofing Sheet Roll Forming Machine With 10-15 Rows Roller Station

    6. Some details you may care about
    1):Can you be responsible for transport?
    A:Yes,please tell me the destination port or address.we have rich experience in transport.

    2):Can you make the machine according to my design or proto type?
    A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

    3):What can you do if the machine broken?
    A:Our machine's warranty period is 1 year, if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.

    If after warranty period,we can through negotiation to solve the problems,and we supply the technical support for the whole life of the equipment.
