hydraulic aluminum profile cheap sheet metal bending machine
1. Company information
BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD.
has been engaged in steel structure roofing and wall pressure tile
machine equipment production, at the same time committed to various
related new product development and development for more than 10
years.
We has advanced production equipment and excellent development and
design personnel, products with high efficiency, high precision,
low processing and consumption characteristics, ranking high level
in the same industry.
Our products vary from the ordinary roof and wall panel pressure
tile machine to ten series steel production line equipment and
equipment, all kinds of pipe bending guardrail cold bending
equipment, which can fully meet the needs of steel structure
building and the rail industry.
We mainly produce and sell All kinds of machines and cnc machining
services. roll forming machines,C Z purlin machine, deck floor
machines,stud &track light keel machine, T grid machine,
downpipe machine,EPS and Rockwool sandwich panel machines for the
building structure and all kinds of CNC machining services.
2. Technical parameters:
| Raw material |
| material spec | sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 0.5-3mm |
| Machine details |
| roller material | High grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | High grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 70mm |
| forming steps | 11 rows |
| productivity | 25-30m/min |
| hydraulic station power | 22 KW |
| hydraulic pressure | 10-12MPa |
| controlling system | famous PLC computer control |
| material of cutting table | Cr 12 mould steel with quenched treatment |
| appearance size | 7500mm*1150mm*1510mm |
| hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirements |
- Electronic control system
|
Description
| - The machine used well-known brand PLC control technology. To
realize the automatic machine
- The system to provide friendly man-machine interface, It can be set
batch, workpiece length and number, etc.
- Encoder count, count and length with function.
- PLC touch screen adopt domestic famous brands.
|

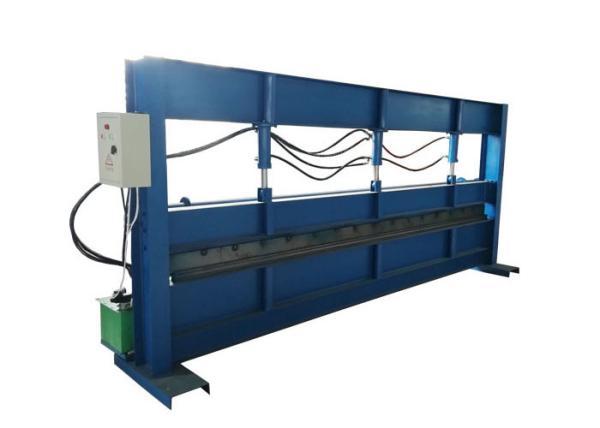

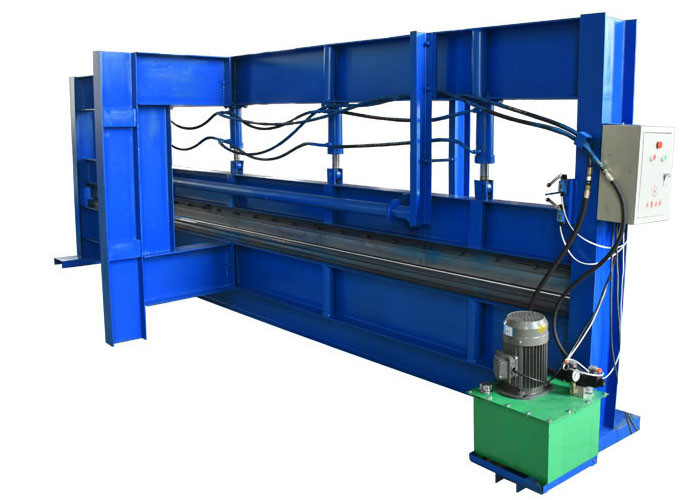

3. Machine picture
4. Installation and training:
A. If buyers visit our factory and check the machine, we will teach
you how to install and use the machine, and also trainyour
workers/technician face to face.
B. Without visiting, we will send you user manual and video to
teach you to install and operate.
C. If buyer needs our technician to go to your local factory,
please arrange board and lodging and other necessary things.
5. FAQ
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers
specifications, using top brand name components.
Q: What size decoiler can you supply us with?
A: From 5-ton decoiler to a 25-ton motorized hydraulic decoiler
Q: How to visit your company?
A:a. Fly to Beijing airport: By high speed train From Beijing Nan
to Cangzhou Xi (1 hour), then we can pick up you.
b. Fly to Shanghai Airport: By high speed train From Shanghai
Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
Q: What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts
can't repair,we can send the new parts replace the broken parts
freell,but you need pay the express cost yourself.if after warranty
period,we can through negotiationfor to solve the problems,and we
supply the technical support for the whole life of the equipment.
