    Weight 3.5T Color Steel Roll Forming Machine Under Frame 300H Beam Voltage 380V

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 400
    Certification : CE/ISO9001
    Price : 7500$-14500$
    Payment Terms : L/C, T/T
    Supply Ability : 40 sets/month
    Delivery Time : 30 days after the deposit
    • Product Details
    • Company Profile

    Weight 3.5T Color Steel Roll Forming Machine Under Frame 300H Beam Voltage 380V

    Color Steel Rain Gutter Water Gutter Roll Forming Making Machinery


    Quick Details

    Type: Gutter Forming Machine

    Production Capacity: 15-20m/min

    Power(W): 4+4KW

    Certification: CE/ISO9001

    Condition: New

    Place of Origin: Hebei, China (Mainland)

    Model Number: Customized

    Voltage: 380V 50Hz 3phases

    Dimension(L*W*H): 8500*1000*1200

    Weight: 4.5T

    Product name: Color Steel Rain Gutter Water Gutter Roll Forming Making Machinery

    Under Frame: 300H-beam

    Forming Step: 16 Steps

    Roller material: 45#steel Chrome Plated

    Shaft material: 45# Steel Outer Diameter: 75mm

    Driving Motor: 4KW with Shanghai Brand

    Transmission Chain: 1 inch with Hangzhou Brand

    Cutting blade material: Cr 12Mov processing

    Usage: Water gutter,rain gutter on roof and wall

    Production Speed: 15-20m/min

    After-sales Service Provided: Engineers available to service machinery overseas


    MACHINE PARAMETERS

    1Suitable raw materialPPGI/PPGL/GI/GL Steel Coils
    2Thickness of coil sheet0.3-0.6mm
    3Feeding Coil width430mm
    4Effective width203.2mm
    5Under frame400H-beam
    6Diameter of Soild shaft70mm, high grade 45# steel,with keyway
    7Roller45# steel hard chrome coated 0.05-0.07mm
    8Thickness of middle plate18mm
    9Forming stations16
    10Drive typeBy chain(1.0 inch) link bearing model 6210
    11Power of main motor3kw with Cycloidal reducer, Lichao, Shanghai
    12Power of pump station3kw, Lichao, Shanghai
    13Forming speedAbout 15-20m/min
    14Hydraulic cuttingControlled by PLC
    15PLCDELTA, TAIWAN / Mitsubishi, Japan
    16Material of cutting bladeCr12Mov, quenching 58-62℃

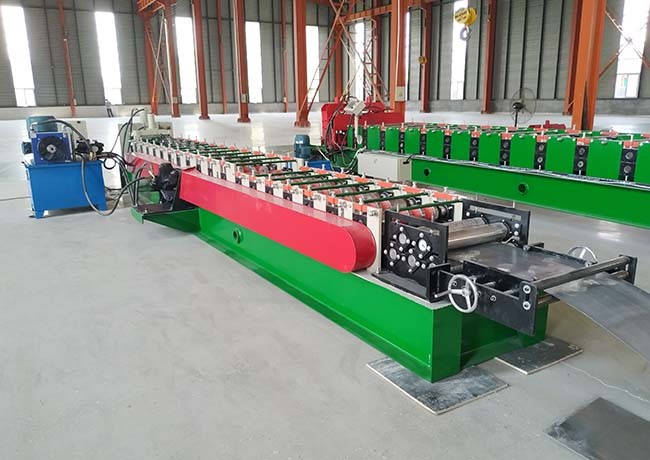

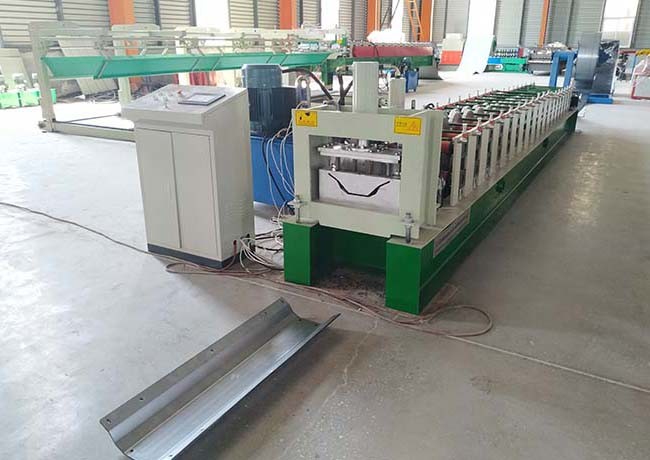

    MACHINE PICTURES

    Weight 3.5T Color Steel Roll Forming Machine Under Frame 300H Beam Voltage 380VWeight 3.5T Color Steel Roll Forming Machine Under Frame 300H Beam Voltage 380VWeight 3.5T Color Steel Roll Forming Machine Under Frame 300H Beam Voltage 380V
