Steel coil slitting metal shearing machine for change the big size
sheet to small size
1. Steel coil slitting metal shearing machine for change the big
size sheet to small size
---- This is an accessories machine for steel roofing factory, some
times, customer need non-standard size steel sheet, will use this
machine.
---- Our machine provide 5 pieces slitting blade, and one cross
cutter, machine working speed can be 10-15m/min.
---- We also provide customized service, design the machine
according to the width and thickness of the sheet.
---- The slitting blade distance is adjustable, customer can get
different size sheet by adjust the blade distance.
2. Steel coil slitting metal shearing machine for change the big
size sheet to small size parameters
processing material | Steel coil |
Steel coil width | 1250mm max |
Steel coil inside diameter | Φ480-530mm |
Steel coil outside diameter | 1300mm |
Steel coil weight | 5 tons max |
Thickness | 0.3-0.8mm |
Slitting tolerance | ±0.5mm |
Slitting pieces | ≤5 |
Slitting blade size | Φ180mm |
Blade material | Cr12MoV |
Slitting shaft diameter | Φ120mm |
Slitting shaft material | 45# |
Slitting speed | ≤15 m/min |
Machine motor | 4 kw adjust speed motor |
Slitting size adjust | By adjust rings, the slitting size should be provide by customer |
3. roll forming machine company profiles
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is
a professional manufacturer and exporter that are concerned with
the design, development and manufactur of cold roll forming
machines. We have high quality professional teams, skillful
talents, strong technical force, strong and independent research
and development capabilities, advanced production equipment and a
perfect after-sales service system.
The company is specialized in manufacturing Color steel forming
machinery, C and Z purling machine, Glazed tile forming machine,
steel structural floor panel roll forming machine, sandwich panel
roll forming machine, highway guardrail forming machine, downspout
forming machine, car panel roll forming machine, roll shutter door
roll forming machine, sheet slitting equipment, and other equipment
accessories.
4. Comapny advantage:
In Botou, we start the pressure roll forming machine export
business from 2008.
As a manufacturer we are specialized in all kinds of roll forming
machine, we are not machine supplier, we are a roll forming
solution provider.
Provide best price,good quality and fast delivery.
5. FAQ
Q1:What is the MOQ?
A:For roll forming machine,the MOQ is one set.
Q2:Could you design the machine for me?
A:Yes,we have professional team of engineers and are able to design
and product roll forming machine as your requestment. Or if you
have own drawings,we can design it as your drawings.
Q3:Are you trading company or factory?Can we visit your factory?
A:We have our own production line and factory.Warmly welcome to our
factory. Once we have your schedule, we will arrange the
professional sales team to follow up your case.
Q4: What's your after-sale service?
A: We'll provide engineer overseas service to help you install and
debug the machine,in addition,free replacement of parts in one year
warranty.
Q5: How is your Payment Term?
A:T/T,L/C ,Western Union
Q6: What’s your delivery time?
A:Normally it is about 45 days, but we will delivery as soon as
possible

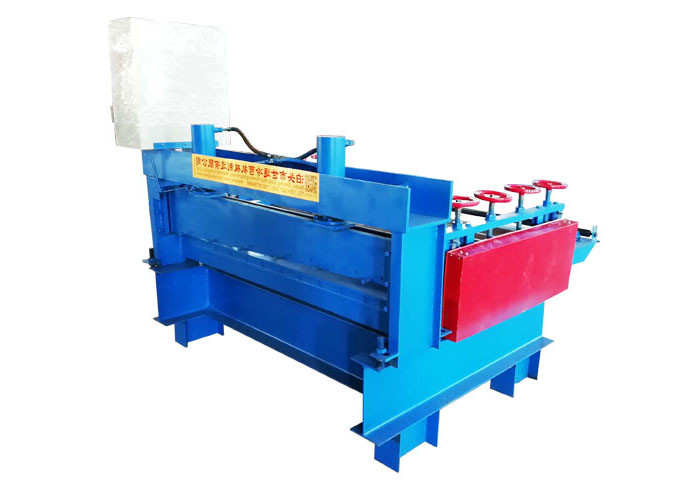

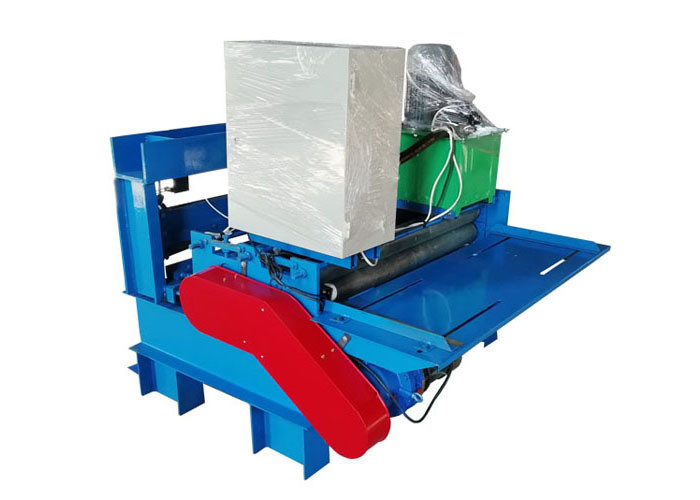

6. Roll forming machine pictures:
