Galvanized metal roof cap flashing roll forming machine / roof tile
ridge cap flashing making machine
1. Usage And Introduction Of This Production Line
Our range of products: sandwich panel production line, roof tile
forming machine, cladding forming machine, metal decking forming
machines,etc. We also can supply steel coils,EPS sandwich panels,PU
sandwich panels to suit diverse requirements of our global
customers.
this machine is popular in Middle East and was exported to many
countries.
Our roll forming machine can produce different kinds of steel panel
tiles for roof and wall. The tiles is mainly used in temporary
building site, steel constructure workshop,and other public
building with fast building speed. It has advantage of pretty
appearance, durable using and so on.
The components of the roll forming machine line includes:
| Hydraulic decoiler ( 5 Tons ) | 1 unit |
| Main Roll Forming Machine | 1 unit |
| Cutting Device | 1 unit |
| Electrical System with PLC Control | 1 unit |
| Hydraulic station | 2 unit |
| Auto stacker | 1 unit |
2. The roll forming machine parameters
| 1 | Name of commodity & specification | ridge cap roll forming machine |
| 2 | Main motor power | 4kw, 3 phase |
| 3 | Hydraulic motor power | 3kw |
| 4 | Hydraulic Pressure | 10-12MPa |
| 5 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) |
| 6 | Control System | PLC Delta Inverter |
| 7 | Main Frame | 400mm H-Beam |
| 8 | Backboard Thickness | 18mm |
| 9 | Chain Size | 33mm |
| 10 | Feeding Material | color steel coils |
| 11 | Feeding Thickness | 0.3-0.8mm |
| 12 | Feeding Width | 600mm |
| 13 | Effective width | 312mm |
| 14 | Productivity | 4-8m/min |
| 15 | Roll Station | 14 |
| 16 | Roller Diameter | 65mm |
| 17 | Roller material | 45# steel |
| 18 | Cutter material | Cr12 , quenched |
| 19 | Cr-Plating Size | 0.05mm |
| 20 | Overall Size | 7500×1000×1200mm |
| 21 | Total Weight | 3T |
3. Who we are and what we do
"The quality first, The prestige first" is the service aim of our
company, we wish to customize the best machines for customers. So
all stuff from SHITONG welcome anyone who are interested in our
machines come to investigate and talk about cooperation.
SHITONG not only produce different types of professional roll
forming machines, but also develop intelligent automatic roll
forming production lines, C&Z shape purline machines, highway
guardrail roll forming machine lines, sandwich panel production
lines, decking forming machines, light keel machines, shutter slat
door forming machines, downpipe machines, gutter machines, etc.
4. After sales service of the roll forming machine production line
(1) Once you paid the deposit, we will start the production as soon
as possible. When the machine is finished, you can come to check
the machine, we will arrange your accommodation and relative
schedule. If you don't come, we can test the machine and send you
test video. It's no problem.
(2) Our machines have one year guarantee, within one year, if the
machine parts has some problem, we will be in charge of the
repairing or replace. Also we will deliver the customer some spare
parts together with the machine when loading the machine.
(3) If the buyer need overseas debug, we can also send technician
to your factory, the customer should undertake all related cost
including the accommodation and round-trip ticket of technician:
100 USD/day . The buyer should make sure the safety of technician.

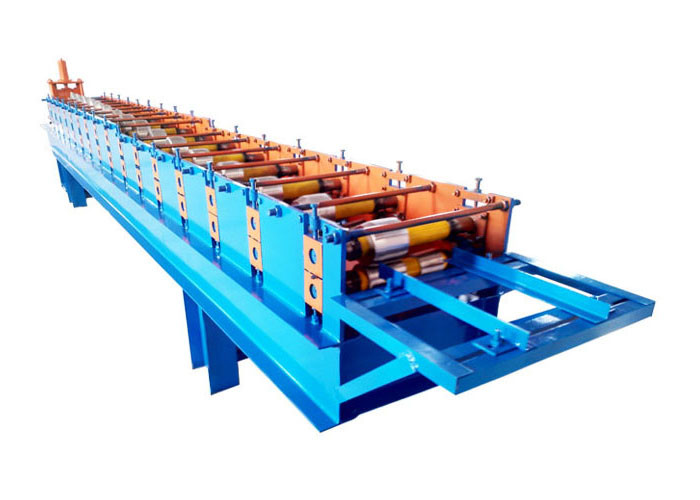

5. Roll forming machine pictures:
6. FAQ
6.1:.What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement
parts free of charge
for any damaged parts caused by quality problems after two
years,you need to buy by factory cost.
6.2:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
6.3: What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement
parts free of charge
for any damaged parts caused by quality problems after two
years,you need to buy by factory cost.
