PPGI roof ridge tiles building materials machinery metal roof ridge
cap roll forming machine
1. Usage And Introduction Of This Production Line
This machine line can work automatically by PLC control system. It
is easy to operate and running stably.
-The machine is used for produce ridge cap tiles.We can manufacture
sizes as customers request.
- The Roll Forming Machine used casting frame,this is kind of
casting frame never cutting and welding,so this frame very strong
and high precision.This kind of frame have long life working time.
The components of the roll forming machine line includes:
| Hydraulic decoiler ( 5 Tons ) | 1 unit |
| Main Roll Forming Machine | 1 unit |
| Cutting Device | 1 unit |
| Electrical System with PLC Control | 1 unit |
| Hydraulic station | 2 unit |
| Auto stacker | 1 unit |
2. The roll forming machine parameters
| No. | Item | Specification |
| 1 | Steel coil | Width | Max 500mm |
| Material | Ppgi/gi/gl/Alu-zinc |
| Thickness | 0.21-0.29mm 0.3-0.6mm 0.3-0.8mm |
| Hardness | Normal hardness/G550/HRB90 |
| 2 | Forming | Frame | 300-450mm Height |
| Stations | As design of drawing Main: 16 stations |
| Rollers | High grade No 45# steel with hard 0.05mm chromed |
| Shaft | High grade No 45# steel |
| Diameter of shaft | As design of drawing Main: 70mm |
| Chain | Main: 1inch |
| 3 | Control | PLC control | China/Taiwan/Japan/Germany brand |
| Main motor | Main: 5.5kw |
| Language | English or as your request |
| 4 | Cutting | Cutter | High grade Cr12 steel |
| Cutting system | Hydraulic |
| Hydraulic pump | Main: 3-7.5kw |
| Cutter frame | Steel plate welding |
| 5 | Decoiler | Manual | 5 Tons |
| 6 | Product | Receiving table | Manual |
3. Who we are and what we do
"The quality first, The prestige first" is the service aim of our
company, we wish to customize the best machines for customers. So
all stuff from SHITONG welcome anyone who are interested in our
machines come to investigate and talk about cooperation.
SHITONG not only produce different types of professional roll
forming machines, but also develop intelligent automatic roll
forming production lines, C&Z shape purline machines, highway
guardrail roll forming machine lines, sandwich panel production
lines, decking forming machines, light keel machines, shutter slat
door forming machines, downpipe machines, gutter machines, etc.
4. Features of the roll forming machine production line
(1)Our products are widely used in various industrial factory,
civilian building, warehouse and easy steel building manufacturing,
and have features such as nice appearance and durable.
(2)Our roll forming machine can be profile custom,and are lower
cost,high efficiency,reliable working ,low energy consumption.we
can do any type of equipment according to customer requirements.
(3) If the buyer need overseas debug, we can also send technician
to your factory, the customer should undertake all related cost
including the accommodation and round-trip ticket of technician:
100 USD/day . The buyer should make sure the safety of technician.

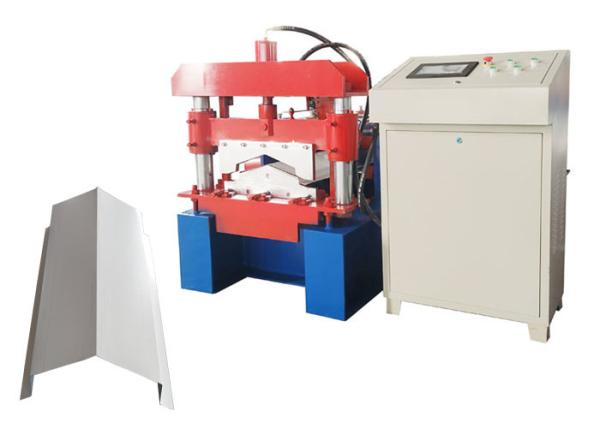

5. Roll forming machine pictures:
6. FAQ
6.1:.What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement
parts free of charge
for any damaged parts caused by quality problems after two
years,you need to buy by factory cost.
6.2:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
6.3: What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement
parts free of charge
for any damaged parts caused by quality problems after two
years,you need to buy by factory cost.
