Customized roof profile ridge floor tile cap roll forming making
machine with iron sheet
1. Usage And Introduction Of This Production Line
This machine is popular in Middle East and was exported to many
countries.
Our roll forming machine can produce different kinds of steel panel
tiles for roof and wall. The tiles is mainly used in temporary
building site, steel constructure workshop,and other public
building with fast building speed. It has advantage of pretty
appearance, durable using and so on.
We can also supply the customized machines.
Applications of the Roll Forming Line:
The finished products are widely used in roofing construction,
after installed the gutter, it will increase the lifetime of the
roofing.
The components of the roll forming machine line includes:
| Hydraulic decoiler ( 5 Tons ) | 1 unit |
| Main Roll Forming Machine | 1 unit |
| Cutting Device | 1 unit |
| Electrical System with PLC Control | 1 unit |
| Hydraulic station | 2 unit |
| Auto stacker | 1 unit |
2. The roll forming machine parameters
| No. | Item | Specification |
| 1 | Can Formed Material | GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 60Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | 0.4-0.7mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | about 3500mmx900mmx1100mm |
| 8 | Speed | 8-18m/min |
| 9 | Diameter of shaft | 40mm |
| 10 | Weight of the Machine | 2500-3500KGS |
| 11 | Material of rollers | CR12 |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Total power (kw) | 11kw |
| 15 | Power of hydraulic system | 4kw |
| 16 | Power of main molding core | 4kw |
3. Who we are and what we do
We have high quality professional teams, skillful talents,strong
technical force,strong and independent research and development
capabilities, advanced production equipment and a perfect
after-sales service system.
We have great confidence in the quality and precision of our
products. Our customers feedback said that it is a great machine,
no noise, clean, very advanced technology. And it also has the
features of light structure and reasonable design.
4. After sales service of the roll forming machine production line
(1) Once you paid the deposit, we will start the production as soon
as possible. When the machine is finished, you can come to check
the machine, we will arrange your accommodation and relative
schedule. If you don't come, we can test the machine and send you
test video. It's no problem.
(2) Our machines have one year guarantee, within one year, if the
machine parts has some problem, we will be in charge of the
repairing or replace. Also we will deliver the customer some spare
parts together with the machine when loading the machine.
(3) If the buyer need overseas debug, we can also send technician
to your factory, the customer should undertake all related cost
including the accommodation and round-trip ticket of technician:
100 USD/day . The buyer should make sure the safety of technician.

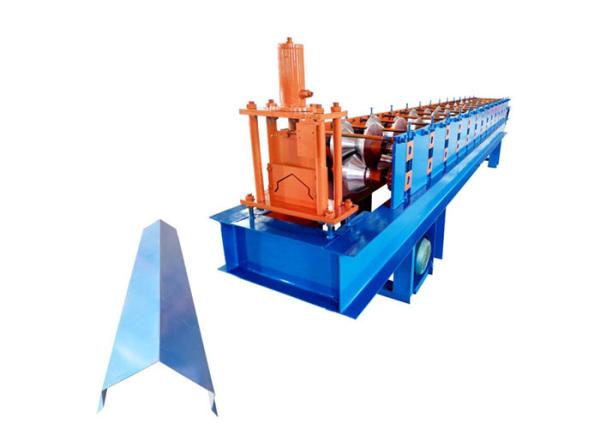

5. Roll forming machine pictures:
6. FAQ
6.1: Do you have any other service?
A: We can manufacture, design, installation and debug various roll
forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer
should pay for the round-trip airplane ticket, and arrange
accommodation during that time.
6.2:How many workers operate this machine to manufacture?
A:Only 1-2 worker is enough, the machine line is full automatic
with PLC control system. After you set the order, the machine can
produce automatically.
6.3: What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement
parts free of charge
for any damaged parts caused by quality problems after two
years,you need to buy by factory cost.
