    Metal Roof Ridge Cap Roll Forming Machine Sidewall 16mm Connect Bar 25mm

    Metal Roof Ridge Cap Roll Forming Machine Roof Ridge Tiles Building Materials Machinery

    Quick Details

    Warranty: 18 month

    Type: Tile Forming Machine

    Production Capacity: 10-15m/min

    Certification: CE/ISO9001

    Applicable Industries: Building Material Shops, Manufacturing Plant, Home Use, Construction works

    Tile Type: Colored Steel

    Voltage: 380V 50Hz 3phases or as your request

    Dimension(L*W*H): 6500mm*900mm*1200mm

    Weight: 3500KG

    Name of Roll Forming Machine: Roof Ridge Cap Roll Forming Machine Tiles Building Materials Machinery

    Color of Roll Forming Machine: Blue, Grey or as your request

    Sidewall: 16mm

    Pre-cutting system: Hydraulic cutting with hand cutting

    Connect bar: 25mm, galvanized

    Transmission model: Sprocket&Chain

    Cutting: Double Oil Cylinder Hydraulic Cutting

    Decoiler: Manual decoiler or Hydraulic decoiler

    Driving method: Electrical motor


    MAIN PAPAMETER


    Suitable raw materialPPGI/PPGL/GI/GL Steel Coils
    Thickness of coil sheet0.3-0.8mm
    Feeding Coil width500mm
    Effective width312mm
    Under frame300H-beam
    Diameter of Soild shaft

    70mm, high grade 45# steel, finish turning, cylindrical grinding,

    with keyway

    Roller

    High grade 45# steel, processed by CNC lathe, Quenched

    and tempered treatment, hard chrome coated 0.05-0.07mm

    Thickness of middle plateGuide pillar memorial archway
    Forming stations16
    Drive typeBy chain(1.0 inch) link bearing model 6210
    Power of main motor5.5kw with Cycloidal reducer, Lichao, Shanghai
    Power of pump station3kw, Lichao, Shanghai
    Forming speedAbout 15-20m/min
    Hydraulic cuttingControlled by PLC
    PLCDELTA, TAIWAN / Mitsubishi, Japan
    Material of cutting bladeCr12Mov, quenching 58-62℃
    Frequency converter

    It has the advantage of slowing down before cutting,

    to ensure the length accuracy(±1mm, far better than

    industrial standard ±3mm).

    SwitchCHNT
    TransducerSAJ

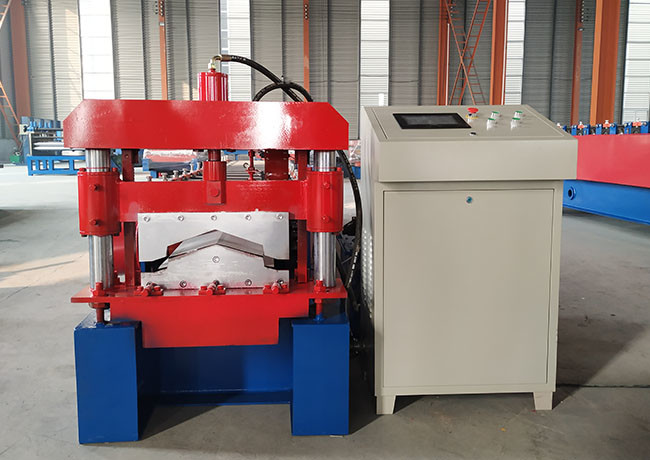

    Machine pictures

    Metal Roof Ridge Cap Roll Forming Machine Sidewall 16mm Connect Bar 25mmMetal Roof Ridge Cap Roll Forming Machine Sidewall 16mm Connect Bar 25mmMetal Roof Ridge Cap Roll Forming Machine Sidewall 16mm Connect Bar 25mm
