    High Speed U Channel Roll Forming Machine Servo Motor Drive Uncoiler Loading Capacity 3T

    Ask Lasest Price
    Brand Name : ST
    Model Number : U30
    Certification : ISO CE
    Price : contact me for good price
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

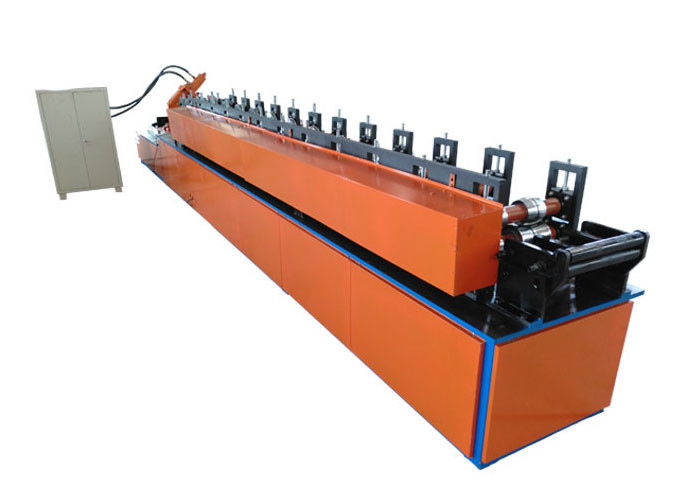

    High Speed U Channel Roll Forming Machine Servo Motor Drive Uncoiler Loading Capacity 3T

    high speed servo motor drive u channel Light Steel Keel Roll Forming Machine


    Material of bladeCr12 Heat Treatment
    Cutting ModeNone stop cutting
    Speed35-40m/min
    Side plate thickness20 mm
    Total power4+4 kw
    Voltage380V 50HZ 3Phase

    Standard Configuration:


    5 tons Manual decoiler1 set
    Main roll forming machine1 set
    Hydraulic pump system1 set
    PLC control system1 set
    Receiving Table1 set
    Spare parts

    1 set


    Product Description

    There are many factors to be considered before purchasing the Omega Profiles Channel Making Machine such as the price , the size of factory , the shape of the profile and so on . That is why it is not easy to choose a rightAluminum Roll Forming Machine


    Choose one suitable After ServiceAluminum Roll Forming Machine is a tough and different job from so many options . Becaused the roll forming machine is customzied , there is no best machinery but the suit one . The most appropriate is the really the best .


    Working Flow:

    Decoiler-------Feeding-------Roll forming-------Cutting------Finished product


    Aluminum Roll Forming Machine Uncoiler:

    Usage: It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.

    Loading capacity: 3T

    Inner diameter: 500-508mm


    Aluminum Roll Forming Machine Feeding Table:

    Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat. Parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.


    Aluminum Roll Forming Machine Hydraulic System:

    Power: 4KW, Hydraulic oil:40#.

    Hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.


    Aluminum Roll Forming Machine Shearing Mechanism:

    It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12, quenching treatment.


    Aluminum Roll Forming Machine Computer Control Cabinet:

    The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.

    High Speed U Channel Roll Forming Machine Servo Motor Drive Uncoiler Loading Capacity 3THigh Speed U Channel Roll Forming Machine Servo Motor Drive Uncoiler Loading Capacity 3T
