    Galvanized Dry Wall Light Steel Keel Roll Forming Machine Hydraulic Pressure 10-12MPa

    Ask Lasest Price
    Brand Name : ST
    Model Number : 30
    Certification : CE, ISO
    Price : contact the sales,she will give you the best offer
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 set per month
    Delivery Time : 30-40 work days
    • Product Details
    • Company Profile

    Galvanized Dry Wall Light Steel Keel Roll Forming Machine Hydraulic Pressure 10-12MPa

    china galvanized dry wall c and u stud frame making light steel keel roll forming machine


    1. Company information


    BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.

    We manufacture all kinds of cold roll forming machines, we main supply trapezoidal roof sheet roll forming machine, glazed tile roller machine, C&Z purlin Rolling Making mahcine and Light steel keel frame former Line.And it include Adjustable Roof Sheet Roll Forming Machine.

    Our company has matured after-sale service network, we could provide efficient and satisfactory service for you throughout the period of our cooperation.If necessary, we can supply you with local technical support and send technicians to for installation and operation training.


    2. Technical parameters:


    Raw material
    material specsheet, galvanized steel sheet, aluminum sheet
    thickness of coil sheet0.5-2mm
    Machine details
    roller materialHigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    shaft materialHigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft70mm
    forming steps15 rows
    productivity15-20m/min
    hydraulic station power7.5KW
    hydraulic pressure10-12MPa
    controlling systemfamous PLC computer control
    material of cutting tableCr 12 mould steel with quenched treatment
    appearance size7500mm*1150mm*1510mm
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirements

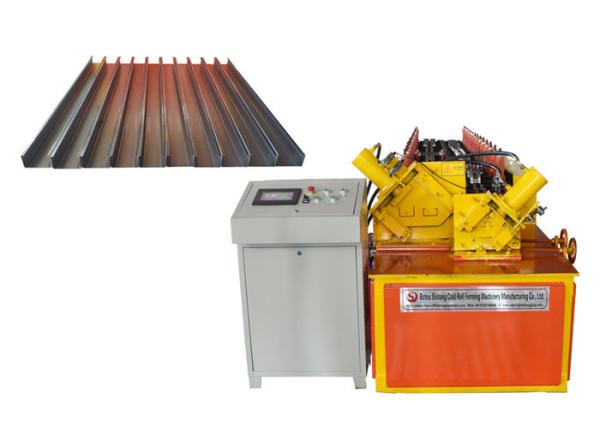

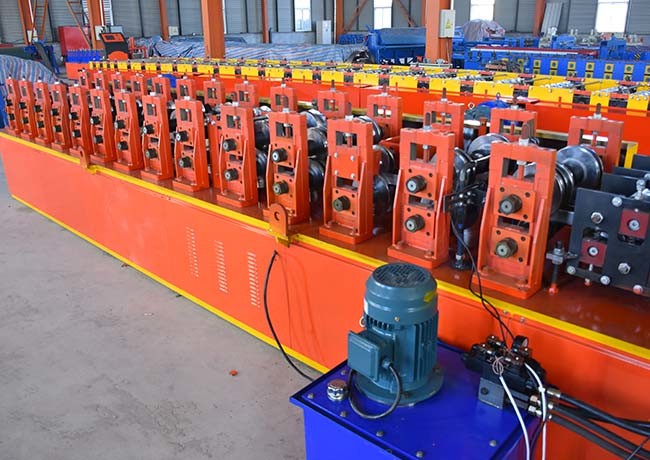

    3. Machine picture

    Galvanized Dry Wall Light Steel Keel Roll Forming Machine Hydraulic Pressure 10-12MPaGalvanized Dry Wall Light Steel Keel Roll Forming Machine Hydraulic Pressure 10-12MPaGalvanized Dry Wall Light Steel Keel Roll Forming Machine Hydraulic Pressure 10-12MPa
    4. Installation and training:

    A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.

    B. Without visiting, we will send you user manual and video to teach you to install and operate.

    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.


    5. FAQ

    6Q: How can I trust you that machines pasted testing running before shipping?

    6A: 1) We record the testing video for your reference.

    2) You are welcome to visit us and test machine in our factory.

    7Q: Do you provide installing and training overseas?

    7A: Overseas machine install and worker training services are optional.
