Green House Light Steel Keel Roll Forming Machine With Smoothly Feeding Device

    Buy cheap Green House Light Steel Keel Roll Forming Machine With Smoothly Feeding Device from wholesalers

    Buy cheap Green House Light Steel Keel Roll Forming Machine With Smoothly Feeding Device from wholesalers
    • Buy cheap Green House Light Steel Keel Roll Forming Machine With Smoothly Feeding Device from wholesalers
    • Buy cheap Green House Light Steel Keel Roll Forming Machine With Smoothly Feeding Device from wholesalers
    • Buy cheap Green House Light Steel Keel Roll Forming Machine With Smoothly Feeding Device from wholesalers

    Green House Light Steel Keel Roll Forming Machine With Smoothly Feeding Device

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 80
    Certification : ISO,CE
    Price : Contact us get the best price
    Payment Terms : L/C,T/T
    Supply Ability : 20sets/month
    Delivery Time : 40-60 days
    • Product Details
    • Company Profile

    Green House Light Steel Keel Roll Forming Machine With Smoothly Feeding Device

    Green house steel frame light steel keel roll forming machine with smoothly feeding device


    1. Green house steel frame light steel keel roll forming machine with smoothly feeding device


    ---- We are a factory with nearly 20 years experiences on Roll Forming Machines;
    ---- We have our own research and development team with strong ability to solve all kinds of problems;

    ---- We have stable raw material suppliers to ensure the best quality and on time supplying with low cost;
    ---- We have more than 20 technicians that can go abroad for the after-sale service;


    2. Green house steel frame light steel keel roll forming machine with smoothly feeding device parameters


    MaterialColored steel sheet, galvanized steel sheet, aluminum sheet
    Thickness of coil sheet0.5-1 mm
    Efficiency width25/30mm
    Machine details
    Roller materialHigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    Shaft materialHigh grade NO. 45 carbon wrought steel
    Cutting bladeCr12 mould steel with quenched treatment
    Diameter of shaft70mm or as your requirement
    Main frame300 H steel
    Forming steps16 stations
    Productivity30-35m/min
    Hydraulic station power5.5 KW
    Hydraulic pressure10-12MPa
    Appearance size7700mm*1500mm*1500mm
    Hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirement
    Cut ModeHydraulic forming after cutting off
    Cutter materiaCr12 Heat Treatment
    Electronic control systemPLC, Touch Screen, Encoding counter
    ColorBlue, green or yellow or as your requirement
    Rolling material45# steel,roller surfaces polishing, hard plating

    Machine Components
    No.NameQTY
    1Manual uncoiler1 set
    2Feeding and leveling device1 set
    3Roll forming system1 set
    4Hydraulic punching and cutting1 set
    5Product support frame1 set
    6PLC Control System1 set

    3. roll forming machine company profiles

    Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


    The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

    4. Busniess terms


    Packing Method

    Main machine is packaged with plastic film

    Transportation

    All machines need one 40 feet container to hold

    Payment Term

    30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

    Delivery Time

    Within 35 days after receiving deposit.

    Warranty

    Two years, and we will provide technical support for wholelife of the equipment.

    If some parts of machine broken within 1 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 1 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.


    5. FAQ

    1. How to play order :

    Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK

    2. What should I provide if I want to customized machine?

    U need provide profile drawing, material, thickness, voltage and your special requirements.

    3. What is the Warranty?

    Within 12 mounts, all technicals are ready to serve you at any time.

    4. What can you do if the machine broken?

    Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

    5. Do you accpect L/C payment terms?

    Yes,we accpect 100% L/C at sight from almost all countries.

    6. What's your payment terms and delivery time?

    30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspectthe machine well and before delivery. Of course your payment terms are acceptable.After we get down payment, we will arrange production. About 30-45 days for delivery.

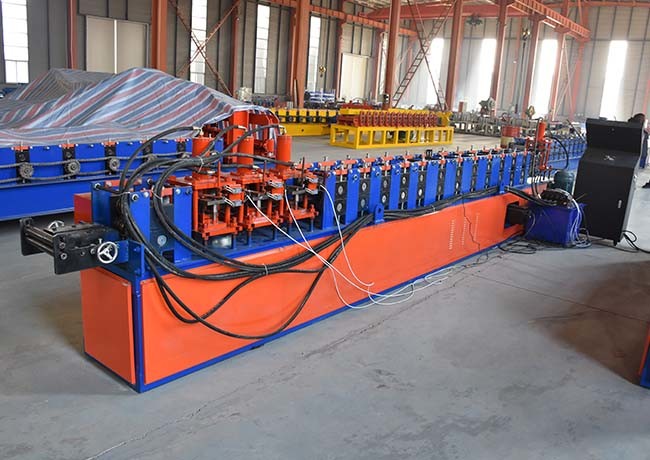

    6. Roll forming machine pictures:
    Green House Light Steel Keel Roll Forming Machine With Smoothly Feeding DeviceGreen House Light Steel Keel Roll Forming Machine With Smoothly Feeding DeviceGreen House Light Steel Keel Roll Forming Machine With Smoothly Feeding Device
