    Weight 7 Tons Sheet Metal Roll Forming Machines U Shape Hydraulic Pressure 10-12MPa

    Ask Lasest Price
    Brand Name : ST
    Model Number : 70
    Certification : CE, ISO
    Price : contact the sales,she will give you the best offer
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 set per month
    Delivery Time : 30-40 work days
    • Product Details
    • Company Profile

    Weight 7 Tons Sheet Metal Roll Forming Machines U Shape Hydraulic Pressure 10-12MPa

    u shape metal sheet construction steel purlin roll forming machine


    1. Company information


    We have established in 2001 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China.We manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe, etc.


    2. Technical parameters:


    Raw material
    material specsheet, galvanized steel sheet, aluminum sheet
    thickness of coil sheet0.5-3mm
    Machine details
    roller materialHigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    shaft materialHigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft80mm
    forming steps12 rows
    productivity20-25m/min
    hydraulic station power22 KW
    hydraulic pressure10-12MPa
    controlling systemfamous PLC computer control
    material of cutting tableCr 12 mould steel with quenched treatment
    appearance size7500mm*1150mm*1510mm
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirements

    Device Configuration

    Nonumber
    (1)Manual decoiler1 set
    (2)Guiding device1 set
    (3)Main roll forming machine1 set
    (4)Hydraulic cutting device1 set
    (5)PLC electric control system1 set
    (6)Hydraulic driving system1 set
    (7)Special tools and parts1 set

    Characteristic


    • Adopt touch screen control box through the man-machine interface, convenient operation, good appearance, consistent with the whole equipment.
    • The main components will stable performance, good reputation, global procurement.
    • Using a number of control technology, automation degree is high.
    • Encoder count, length accurately.

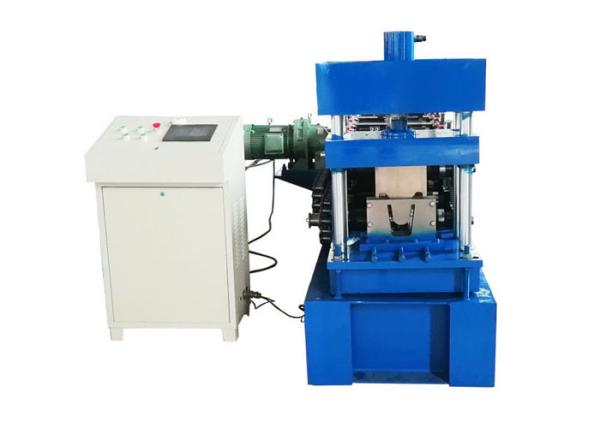

    3. Machine picture
    Weight 7 Tons Sheet Metal Roll Forming Machines U Shape Hydraulic Pressure 10-12MPaWeight 7 Tons Sheet Metal Roll Forming Machines U Shape Hydraulic Pressure 10-12MPaWeight 7 Tons Sheet Metal Roll Forming Machines U Shape Hydraulic Pressure 10-12MPa
    4. Installation and training:

    A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.

    B. Without visiting, we will send you user manual and video to teach you to install and operate.

    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.


    5. Our Machine Advantage

    1. Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.

    2. Good service: we provide the technical support for whole life of our machines.

    3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

    4. Easy operation:All machine cotrolling by PLC computer controlling systerm.

    5. Elegant apperance:Protect the machine from rust and the painted colour can be customized

    6. Reasonable price:We offer the best price in our industry.


    6. FAQ

    1. Q: Are you manufacturer or trading company?
    A: We are manufacture and trading company.
    2. Q:What info you need before you make the proposal?
    A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
    3. Q: what is the MOQ?
    A: One set
    4. Q: Do you provide installing and debugging overseas?
    A: Overseas machine install and worker training services are optional.
    5. Q: Can you make the machine according to my design or prototype?
    A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
    6. Q: How does your factory do regarding quality control?
    A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
    7. Q: How can I trust you that machines pasted testing running before shipping?
    A: 1) We record the testing video for your reference
    2) We welcome you visit us and test machine by yourself in our factory.
    8. Q: What about our after-sale service?
    A: we provide technical support on line as well as overseas services by skillful technicians.
    9. Q: What should I do if I just start a new business?
    A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
    10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
    A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
