    Automatic C Shape Purlin Roll Forming Machine Blue Color Galvanized Coil Material

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : C80-300
    Certification : CE, ISO 9000
    Price : USD 15000-18000 set
    Payment Terms : T/T, L/C
    Supply Ability : set 20 month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Automatic C Shape Purlin Roll Forming Machine Blue Color Galvanized Coil Material

    Automatic C shape purlin roll forming machine with PLC Control System


    1. Automatic C shape purlin roll forming machine with PLC Control System


    ---- Produce different purlin size by changing rollers or spacers.

    ---- No need changing cutter for different size.

    ---- Easy operation, low maintenance cost

    ---- Optional Punch hole at any position of purlin web side and flange side


    2. Automatic C shape purlin roll forming machine with PLC Control System parameters


    Raw material
    material specsheet, galvanized steel sheet, aluminum sheet
    thickness of coil sheet1-3mm
    Machine details
    roller materialHigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    shaft materialHigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft70 mm
    forming steps12 rows
    productivity15-20 m/min
    hydraulic station power22 KW
    hydraulic pressure10-12MPa
    controlling systemfamous PLC computer control
    material of cutting tableCr 12 mould steel with quenched treatment
    appearance size7500mm*1150mm*1510mm
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirements

    Machine Components
    No.NameQTY
    1Manual uncoiler1 set
    2Feeding and leveling device1 set
    3Roll forming system1 set
    4Hydraulic punching and cutting1 set
    5Product support frame1 set
    6PLC Control System1 set

    3. roll forming machine company profiles

    Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


    The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

    4. FAQ (about our roll forming machine)


    1. Does one machine can only produce one style panel profile?
    Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

    2. Do you have after sales support?
    Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.

    3. How to visit your company?
    A. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
    B. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.

    4. What can you do if the machine broken?
    Our machine's warranty period is 12months, if the broken parts can't repair, we can send the new parts replace the broken parts freell, but you need pay the express cost yourself.if after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.

    5. Can you be responsible for transport?
    Yes, please tell me the destination port or address.we have rich experience in transport.

    6. You are Trade Company or factory?
    We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.

    7. Why your price is higher than others?
    As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.

    8. How long the machine could be made?
    Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.

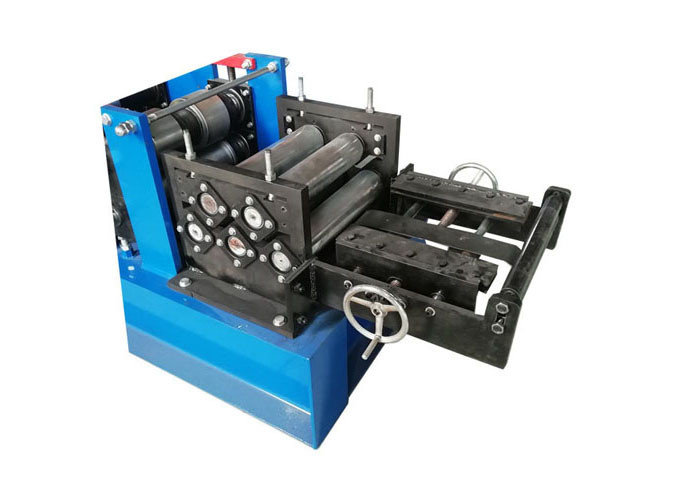

    5. Roll forming machine pictures:

    Automatic C Shape Purlin Roll Forming Machine Blue Color Galvanized Coil MaterialAutomatic C Shape Purlin Roll Forming Machine Blue Color Galvanized Coil MaterialAutomatic C Shape Purlin Roll Forming Machine Blue Color Galvanized Coil Material
