Hand touch screen light steel keel roll forming machine for house
ceiling making
1. Hand touch screen light steel keel roll forming machine for house
ceiling making
---- Easy to learn how to operate the machine, we provide
instructor teach customer.
---- Machine used for house inside ceiling making.
---- Hydrualic cutter, 40-40# hydraulic oil.
---- High effeciency working, one minute can produce 12 meters.
2. Hand touch screen light steel keel roll forming machine for house
ceiling making parameters
| Material | Colored steel sheet, galvanized steel sheet, aluminum sheet |
| Thickness of coil sheet | 0.5-1 mm |
| Efficiency width | 25/30mm |
| Machine details |
| Roller material | High grade NO. 45 forged steel with 0.05mm hard chrome plating |
| Shaft material | High grade NO. 45 carbon wrought steel |
| Cutting blade | Cr12 mould steel with quenched treatment |
| Diameter of shaft | 70mm or as your requirement |
| Main frame | 300 H steel |
| Forming steps | 16 stations |
| Productivity | 30-35m/min |
| Hydraulic station power | 5.5 KW |
| Hydraulic pressure | 10-12MPa |
| Appearance size | 7700mm*1500mm*1500mm |
| Hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirement |
| Cut Mode | Hydraulic forming after cutting off |
| Cutter materia | Cr12 Heat Treatment |
| Electronic control system | PLC, Touch Screen, Encoding counter |
| Color | Blue, green or yellow or as your requirement |
| Rolling material | 45# steel,roller surfaces polishing, hard plating |
| Machine Components |
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with
the design, development and manufactur of cold roll forming
machines. We have high quality professional teams, skillful
talents, strong technical force, strong and independent research
and development capabilities, advanced production equipment and a
perfect after-sales service system.
The company is specialized in manufacturing Color steel forming
machinery, C and Z purling machine, Glazed tile forming machine,
steel structural floor panel roll forming machine, sandwich panel
roll forming machine, highway guardrail forming machine, downspout
forming machine, car panel roll forming machine, roll shutter door
roll forming machine, sheet slitting equipment, and other equipment
accessories.
4. Our advantage
1. We are a factory with nearly 20 years experiences on Roll
Forming Machines;
2. We have our own research and development team with strong
ability to solve all kinds of problems;
3. We have stable raw material suppliers to ensure the best quality
and on time supplying with low cost;
4. We have more than 20 technicians that can go abroad for the
after-sale service;
5. We have more than 100 kinds and models products for your choice,
you can find the most kind of roll forming machines from us;
6. We have Laser Cutting Machine, CNC Machining Center, Polishing
Line, Painting Line, etc. advanced production equipments to ensure
the quality of each part and the best appearance of our machines;
7. Our machines have reached the International Inspection
Standards;
8. We have got the ISO9001:2008 Certificate and CE Certificate;
9. We are always waiting to serve you 7 days a week and 24 hours a
day.
5. FAQ
1.How to play order :
Inquiry---confirm the profile drawings and price---confirm the
PI---arrange the deposit or L/C---then OK
2.How to visit our company :
Fly to Beijing airport: By high speed train From Beijing Nan to
Cangzhou Xi(1 hour),then we can pick up you.
Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao
to Cangzhou Xi(4.5hours),then we can pick up you.
3.When we exported the machines :
We have beening making and exporting the machines since from the
year of 1998.
4.*Guarantee* :
Lifetime maintenance guarantee.If some part of the machine is
broken.We will supply the best original parts for the machine from
our own factory. If the parts are damaged due to improper
operation, buyer will pay for the freight.
5.*After-sales* :
To give you the best after-sales service, the first give you video
call with professional technicians , the second we send technicians
to your country to repair the machine,
The buyer shall bear all expenses, including visa, round-trip
airfare and suitable accommodation, and pay the salary of usd 100 /
day.

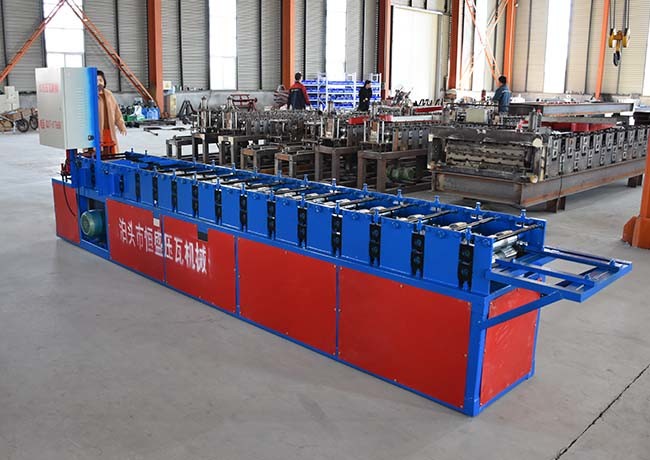

6. Roll forming machine pictures:
