    Weight 16.3T Rockwool Sandwich Panel Machine , EPS Sandwich Panel Production Line

    Ask Lasest Price
    Brand Name : shitong
    Model Number : 950
    Certification : CE/ISO9001
    Price : contact me to get the lowest price
    Payment Terms : L/C, T/T
    Supply Ability : 30 sets/ month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Weight 16.3T Rockwool Sandwich Panel Machine , EPS Sandwich Panel Production Line

    Rock Wool/EPS Sandwich Panel Roll Forming Machine/Roof Sheet Production Line


    Quick Details

    Warranty: 1.5 years

    Type: Tile Forming Machine

    Production Capacity: 0-4M/MIN

    Certification: CE/ISO9001

    Condition: New

    Tile Type: sandwich panel line

    Use: Roof /wall

    Voltage: 380V/50-60HZ

    Weight: 25Tons

    Usage: Roof and Wall Panel

    Product name: Rock Wool/EPS Sandwich Panel Production Line

    Main motor power: 32KW

    Annual output: 600000 Square metre


    Product Description

    No.EPS or Rockwool Sandwich Panel Machine in Botou, Hebei
    1Suitable materialPPGI/Aluminium sheet/galvanized sheet/various sheet plates
    3Coil width1000mm
    4Cover width980mm
    6Diameter of Soild shaft75mm, high grade 45# steel
    7Roller

    Quenched and tempered treatment,

    hard chrome coated 0.05-0.07mm

    8Core thickness20-300mm
    9Weight25 stations
    10Drive typeBy chain(1.0 inch) link bearing model 6210
    11main motor32kw with Cycloidal reducer
    12pump station4kw
    13Forming speedAbout 0-4.5m/min
    14Hydraulic cuttingControlled by PLC( DELTA(TAIWAN)/Mitsubishi)
    16Material of razor bladesCr 12, quenching 58-62℃
    17Frequency converter

    It has the advantage of slowing down before cutting, to ensure the

    length accuracy(±1mm, far better than industrial standard ±3mm).

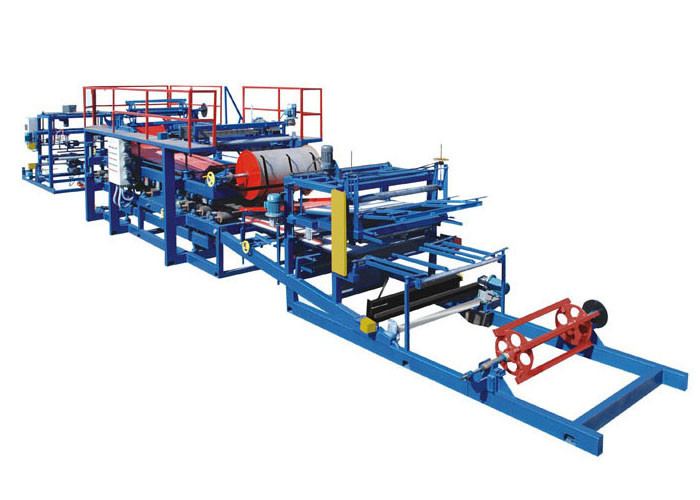

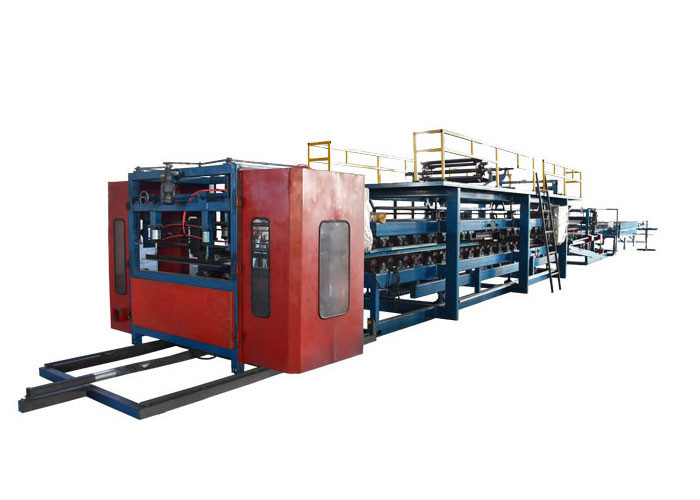

    machine pictures:

    Weight 16.3T Rockwool Sandwich Panel Machine , EPS Sandwich Panel Production LineWeight 16.3T Rockwool Sandwich Panel Machine , EPS Sandwich Panel Production LineWeight 16.3T Rockwool Sandwich Panel Machine , EPS Sandwich Panel Production Line
