Fully automatic roller shutter door roll forming machine with holes
punching device
1. Instruction of the roll forming machine production line
This machine is popular in Middle East and was exported to many
countries.
Our roll forming machine can produce different kinds of steel panel
tiles for roof and wall. The tiles is mainly used in temporary
building site, steel constructure workshop,and other public
building with fast building speed. It has advantage of pretty
appearance, durable using and so on.
Machine Application
All the roller and cutter we use Cr12 steel with quenched treatment
to make sure the the roller more stronger and not scratch the
surface of produce, and the cutter more harder and long lived.
The components that each set machine includes:
| COMPONENT FOR roll forming machine |
| Name | Quantity | Units |
| Decoiler | 1 | Set |
| Main Machine | Feeding device | 1 | Set |
| Roll forming system | 1 | Set |
| Cut Equipment | 1 | Set |
| Hydraulic system | 1 | Set |
Electriccontrol system
| 1
| Set |
| Supporter/Automatic Stacker | 1 | Set |
2. The roll forming machine parameters
| No. | Item | Specification |
| 1 | Can Formed Material | GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 50Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | 0.5-1.0mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | 4500mmx900mmx1300mm |
| 8 | Speed | 8-15m/min |
| 9 | Diameter of shaft | 40mm |
| 10 | Weight of the Machine | 2000-2500KGS |
| 11 | Material of rollers | Cr12 |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Total power (kw) | 8kw |
| 15 | Power of hydraulic system | 4kw |
| 16 | Power of main molding core | 4kw |
3. Who we are and what we do
We have high quality professional teams, skillful talents,strong
technical force,strong and independent research and development
capabilities, advanced production equipment and a perfect
after-sales service system.
We have great confidence in the quality and precision of our
products. Our customers feedback said that it is a great machine,
no noise, clean, very advanced technology. And it also has the
features of light structure and reasonable design.
4. Features of the roll forming machine production line
a) The structure is simple and the appearance of the machine is
beautiful because we adopt the shape-steel structure and most of
the connecter is screw which make the machine flexible and
stronger.
b) All the components of machine are from brand-famous enterprise
so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to
guarantee the length to be precise and the finished product clear
without deforming .
d) It is very easy to install the equipment and suitable for
producing in the factory.
e) Low noise with high efficiency

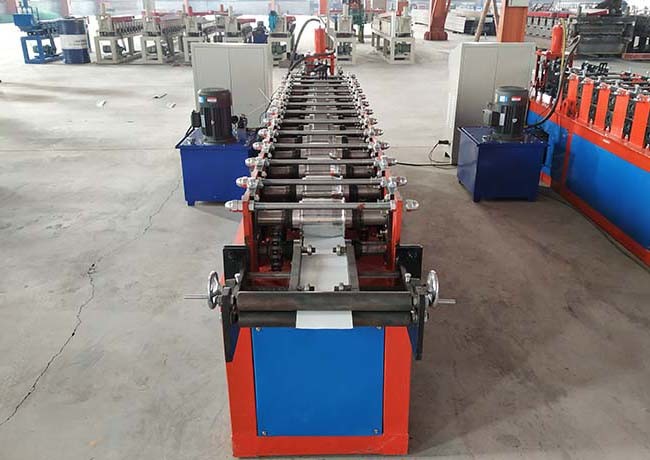

5. Roll forming machine pictures:
6. FAQ
Q1: If our country's voltage is different from yours, how to solve
that?
- The usual voltage is 380v,220v,415v. If yours are not one of
them, we will design the electric motor to suit your voltage.
Q2:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your
questions on our machines, such as technical parameter, price,
payment terms, ect. If you wanna visit our factory and check the
machines, we also can send you invitation letter and give you our
warmest welcome.
Q3, What policy of your garentee?
- Within the One-YEARS period, we could supply you the replacement
parts free of charge
for any damaged parts caused by quality problems after two
years,you need to buy by factory cost.
