Roller shutter door profile roll forming machine metal garage door
slats making machinery
1. Instruction of the roll forming machine production line
Rolling shutter milling automatic roller steel shutter door roll
forming machine is made up of uncoiler , feeding part, main roll
forming system ,cutting system and receive table.
Machine Application
The production of shutter door machine are widely used in the
production of various industrial plants, warehouses and
supermarkets, shopping malls shutter doors.
The components that each set machine includes:
| Hydraulic decoiler ( 5 Tons ) | 1 unit |
| Main Roll Forming Machine | 1 unit |
| Cutting Device | 1 unit |
| Electrical System with PLC Control | 1 unit |
| Hydraulic station | 1 unit |
| Auto stacker | 1 unit |
2. The roll forming machine parameters
| Raw material |
| Processing material | Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized |
| Processing thickness (mm) | 0.3-1.2mm or as your customized |
| Material of rollers | High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm |
| Material of shafts | 45# steel |
| Machine details |
| Diameter of shafts | 60mm or as your customized |
| Forming speed | 20-25m/min or as your customized |
| Under frame | 300 H-beam |
| Sidewall | 16mm |
| Connect bar | 25mm, zinc plated |
| Forming steps | 10-18 or as your customized |
| Control system | Delta PLC and Inverter |
| Suitable power | 380V, 50 Hz, 3 phase or according to your need |
| Drive mode | Chain and sprocket, chain size 1 inch |
| Main motor | 4kw |
| Hydraulic pump station | 4kw |
| Cutting model | Hydraulic profile cutting |
| Weight of the machine | 2 ton -4 ton |
3. Who we are and what we do
SHITONG was established in 2005. Our company is a comprehensive
enterprise integrating production, sales and services and tranding
in all kinds of machinery. We are mainly devoted to the development
and manufacturing of metal plate cold bending roll forming
equipment.
We have high quality professional teams, skillful talents,strong
technical force,strong and independent research and development
capabilities, advanced production equipment and a perfect
after-sales service system.
4. Features of the roll forming machine production line
a) The structure is simple and the appearance of the machine is
beautiful because we adopt the shape-steel structure and most of
the connecter is screw which make the machine flexible and
stronger.
b) All the components of machine are from brand-famous enterprise
so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to
guarantee the length to be precise and the finished product clear
without deforming .
d) It is very easy to install the equipment and suitable for
producing in the factory.
e) Low noise with high efficiency

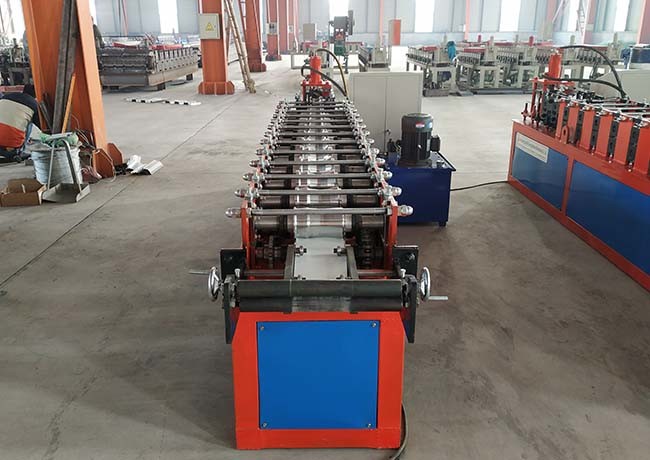

5. Roll forming machine pictures:
6. FAQ
Q1, If our country's voltage is different from yours, how to solve
that?
A1, The usual voltage is 380v,220v,415v. If yours are not one of
them, we will design the electric motor to suit your voltage.
Q2, What can you do if the machine broken?
A2, Our machine's warranty period is 1 year,
if the broken parts can't repair,we can free send the new parts
replace the broken parts to you except the solenoid valve,the
solenoid valve you must pay the express cost yourself.
if after warranty period,we can through negotiation for to solve
the problems,and we supply the technical support for the whole life
of the equipment.
Q3, How can we be assured that you will deliver us quality machine
with spare parts?
A3,1. Customers to send the technical people to our factory for
checking the quality.
2. We can send the technicians to the buyer`s factory for the
installation of the machine.
