    Garage Door Steel Profile Roll Forming Machine Dimension 4500*800*1300MM

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 125
    Certification : CE/ISO9001
    Price : 7000$
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 40 SETS/ MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Garage Door Steel Profile Roll Forming Machine Dimension 4500*800*1300MM

    Metal steel garage door rolling shutter door slat roll forming machine/production line

    Quick Details

    Warranty: 1 Year

    Type: Tile Forming Machine

    Production Capacity: 8-12 meters per min

    Certification: CE certificate

    After-sales Service Provided: Online support,Video technical support, Engineers available to service machinery overseas

    Condition: New

    Tile Type: Colored Steel

    Use: door

    Place of Origin: Hebei, China (Mainland)

    Voltage: 380V/50Hz

    Dimension(L*W*H): 4500mm*800mm*1200mm

    Weight: 2 tons

    any color: as you like

    Usage: Steel Construction

    Cutting blade material: Cr12 Mov

    Name: rolling shutter door roll forming machine

    Control system: PLC

    Roll material: Steel 45#


    Technique parameters of the processing line

    (1) Suitable material: aluzinc/galvanized steel/colored coil

    (2) Thickness of the plate : 0.3-0.8mm

    (3) Input width of the plate: 180 mm

    (5) Productivity :8-12m/min

    (6) Roller steps :12 rows

    (8) Roller material: 45# steel

    (9) Diameter of active shaft: 50mm

    (10)Main forming machine body : 300mm H steel

    (11) Transmission chain is1’’;

    Reducer is 4kw Xingxing Cycloid which works stably and no noise.

    (12) Cutting hydraulic systerm adpats CDF-10 gear pump,the motor power is 3kw, no noise, work stably, long life expentancy.

    (13) PLC control systerm, easy to operate, high precision and work stably.

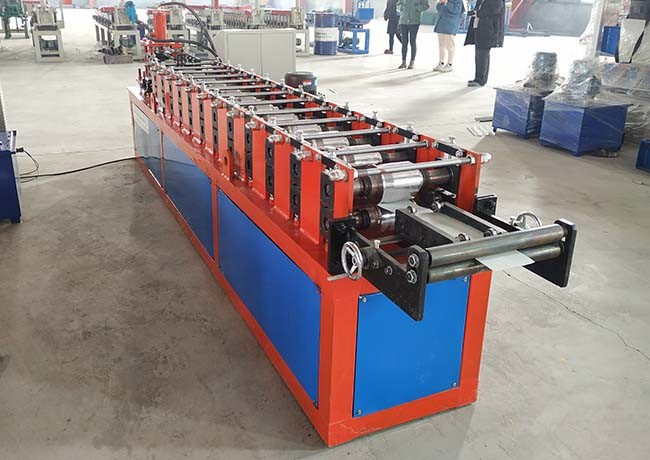

    Machine pictures:

    Garage Door Steel Profile Roll Forming Machine Dimension 4500*800*1300MMGarage Door Steel Profile Roll Forming Machine Dimension 4500*800*1300MMGarage Door Steel Profile Roll Forming Machine Dimension 4500*800*1300MM
