    Construction Materials Cold Roll Forming Machine , Door Frame Roll Forming Machine

    Ask Lasest Price
    Brand Name : ST
    Model Number : 1000
    Certification : CE, ISO
    Price : contact the sales,she will give you the best offer
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 set per month
    Delivery Time : 30-40 work days
    • Product Details
    • Company Profile

    Construction Materials Cold Roll Forming Machine , Door Frame Roll Forming Machine

    door frame construction materials cold sheet metal roll forming machine


    1. Company information


    BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.

    We have high quality professional teams,skillful talents,strong technical force,strong and indenpendent reaserch and development capabilities,advanced production equipment and a perfect after-sales service system.We have great confidence in the quality and precision of our product.Our customers feedback said that it is a great machine,no noise,clean,very advanced technology ,and it also has the features of light sturcture and reasonable design.


    2. Technical parameters:


    configurationsmanual decoiler, main machine of roll forming, cutting device, output table, electric motor, PLC control system
    Materialprocessing materialColored Steel plate, Galvanized Board, Aluminum Plate
    thickness0.3mm-0.8mm
    Efficienty width1000mm
    Coil width1200mm
    Manual decoilerThe maximum load capacity:5 tonExpand by band
    The coil inside diameter:450-550mm
    Suitable Coil width:1250mm
    Main Forming machineForming steps13steps
    Shaft diameter70 mm
    Thick of arch frame16mm
    Frame bodyHigh strength steel pipe weld with color steel sheet cover
    roller material45# steel
    shaft material45# steel
    cutter materialCr12 mold steel with quenched treatment
    TransmissionBy 1” chain
    Work speed20-25m/min
    Hydraulic systemAutomatic hydraulic cutting after forming, without wasting.
    Control Device

    PLC control

    touch screen

    Program language: English/Chinese(or as required)

    Operating modeButton+touch screen
    Total power4 kw
    Main body colorBlue and orange(or as required)
    Voltage380v/50hz/3ph(or as required)

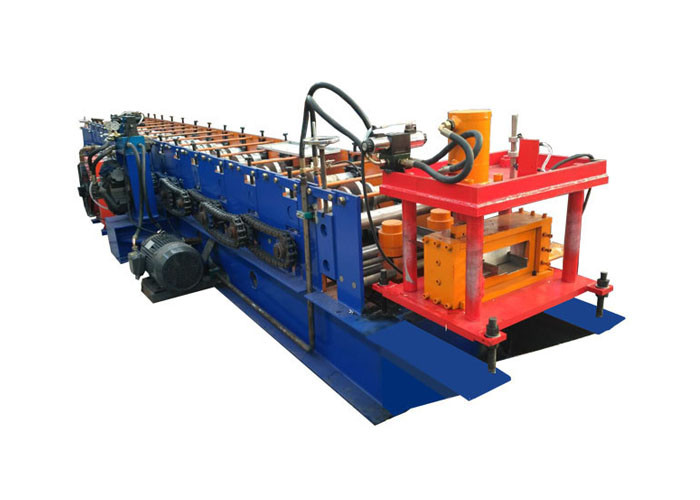

    3. Machine picture
    Construction Materials Cold Roll Forming Machine , Door Frame Roll Forming Machine
    4. Installation and training:

    A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.

    B. Without visiting, we will send you user manual and video to teach you to install and operate.

    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.


    5. After service

    A. One year guarantee for whole machine.

    B. 24 hours technical support by email or phone call.

    C. If there is any problem found of the machine, we will repair it for free in one year.


    6. FAQ

    1. How to choose the machine,any information i need to offer?

    You need to provide the product drawings.


    2. How about your machine quality?

    Durmapress is a mature Brand in China,through our many years research in technology,our design including structure and detailed sercurity and precision has enhanced grearly and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry,there are Durmapress machines.And where there are our machines,there are good reputation and terminal user satisfaction.


    3. Where is your factory?

    Durmapress located in Bowang district high and new technology industrial park,maanshan city Anhui province which is the leading area in China and also in the worldwide as the center of the metal place solution machines.


    4. Do you accpect L/C payment terms?

    Yes,we accpect 100% L/C at sight from almost all countries.
