Rock wool and steel sheet sandwich panel forming machine with auto
runing system
1. Rock wool and steel sheet sandwich panel forming machine with
auto runing system
Sandwich panel is a compound line, contain roll forming machine and
sandwich panel rolling system. The whole line is controlled by the
PLC control center.
The material is steel sheet coil, its thickness can be 0.4-0.6mm,
width can be 1250mm, the hydraulic strength ≤ 235MP. The stuffing
is EPS or Rock Wool.
2. Rock wool and steel sheet sandwich panel forming machine with
auto runing system parameters
Sandwich panel size:
Length: ≥ 2m
Width: ≤ 1250mm
Thickness: As per the drawing
2. Steel sheet coil size:
Thickness: 0.4mm-0.6mm
Width≤ 1250mm
The max weight: 5T
Inner diameter of coil: 500mm and 600mm
Outer diameter of coil: 1000mm
3. Stuffing material: EPS
Density≥ 2kg/m3, tolerance of straight≤ 1/m, arched tolerance≤ 3/m,
Level tolerance≤ 1.5mm, EPS panel length≥ 3m.
4. Stuffing material: Rock wool
Density≥ 100/m3, Rock wool panel length≥ 3m.
5. Processing speed: 1000-3000mm/min (The speed can be adjusted)
6. The length of the whole line: 40m
7. The available Length of sandwich panel: 7.5m
8. Control center: PLC
9. Power of main motor: 40kw
10. Power source: 380V/3phase/50 Hz
11. Air pressure: 0.7MP (you can control by yourself)
12. The best working temperature: 25oC.
13. Material of roller: C45steel hard chrome plating
14. Material of blade: Cr12
| Machine Components |
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. Shitong cold roll forming machine company profiles
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is
a professional manufacturer and exporter that are concerned with
the design, development and manufactur of cold roll forming
machines. We have high quality professional teams, skillful
talents, strong technical force, strong and independent research
and development capabilities, advanced production equipment and a
perfect after-sales service system.
The company is specialized in manufacturing Color steel forming
machinery, C and Z purling machine, Glazed tile forming machine,
steel structural floor panel roll forming machine, sandwich panel
roll forming machine, highway guardrail forming machine, downspout
forming machine, car panel roll forming machine, roll shutter door
roll forming machine, sheet slitting equipment, and other equipment
accessories.
4. Our service
1). Customize roll forming machines since 2003.
2). Certificate: ISO 9001, CE
3).12 months warranty, lifetime technical support
4). Capacity: 12-15 sets/month
5). Delivery: In only 5-8 weeks for urgent order
6). Have our own tool center. 12 sets CNC machines.
7). Third party inspection: Bureau Veritas, SGS. Can provide
assessment report.
8). Set up business relationship with companies in more than 40
countries
9).Technician overseas installing and training available
10.Professional online service team, any email or message will be
replied within 8 hours.
5. FAQ (about our roll forming machine)
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are
optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas
services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control
complies with ISO9001. Every machine has to past testing running
before it's packed for shipment.
5) How can I trust you that machines pasted testing running before
shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our
factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust
you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS
assessment (Audit report can be provided).

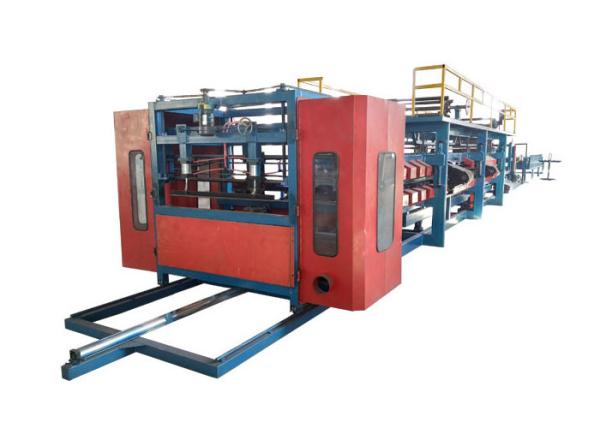

5. Roll forming machine pictures:
