    Steel Panel Floor Deck Roll Forming Machine Hydraulic Pressure 10-12MPa

    decking panel steel making floor deck roll forming machine equipment

    1. Company information

    BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.

    Our business ablity

    Till now,we have export to more than 50 countries and areas.Tha main market is South America,Africa,middel east,eastern Europe,Southeast Asia.We also take part in different exhibitions all over the world.

    Working Flow:

    Decoiler-------Feeding-------Roll forming-------Cutting------Finished product


    2. Technical parameters:

    Raw material

    material speccolored steel sheet, galvanized steel sheet, aluminum sheet
    thickness of coil sheet0.8-1.2 mm
    material expand width1000mm
    Efficiency width720mm

    Machine details

    roller materialHigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    shaft materialHigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft100mm
    forming steps23 rows
    productivity20-25m/min
    hydraulic station power22 KW
    hydraulic pressure10-12MPa
    controlling systemfamous PLC computer control
    material of cutting tableCr 12 mould steel with quenched treatment
    appearance size11600mm*1500mm*1510mm
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirements

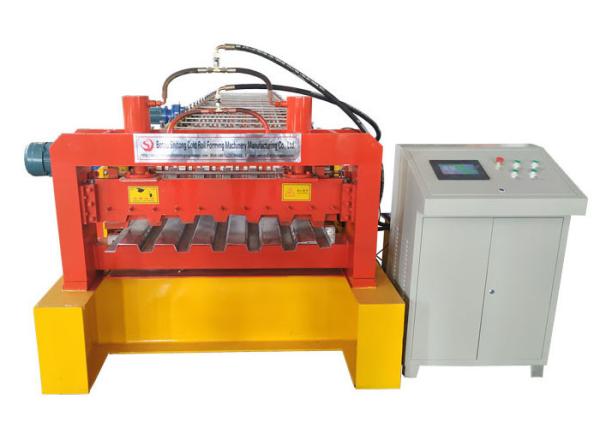

    3. Machine picture

    Steel Panel Floor Deck Roll Forming Machine Hydraulic Pressure 10-12MPaSteel Panel Floor Deck Roll Forming Machine Hydraulic Pressure 10-12MPaSteel Panel Floor Deck Roll Forming Machine Hydraulic Pressure 10-12MPa
    4. Installation and training:

    A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.
    B. Without visiting, we will send you user manual and video to teach you to install and operate.
    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

    5. FAQ
    Q: Why we are your best choice?
    A: We have direct factory and many years of export experience, and offer the best price with high quality product, timely delivery, also have good after-sales service, therefore with good reputation on boards and with many clients have good long-term business relationship.
    Q: Can I order the product with special size?
    A: Of course you can, also we will produce the products according to your detail requests.

    Q: What policy of your garentee?
    A: Within the One-YEARS period, we could supply you the replacement parts free of charge
    for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
