    Power 15 Kw Metal Deck Roll Forming Machine Dimension 15000*1200*1100mm CE Certification

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 1025
    Certification : CE/ISO9001
    Price : 23000--28000$
    Payment Terms : L/C, T/T
    Supply Ability : 30 SETS / MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Power 15 Kw Metal Deck Roll Forming Machine Dimension 15000*1200*1100mm CE Certification

    Automatic metal decking roll forming machine/floor decking roll forming machine/South American popular profile machine

    Quick Details

    Warranty: 2 Years
    Type: Tile Forming Machine
    Production Capacity: 8-12 meters per min
    Certification: CE certificate
    After-sales Service: Online support, Free spare parts, Field installation, commissioning and training,
    Tile Type: Colored Steel
    Use: Floor
    Place of Origin: Hebei, China (Mainland)
    Brand Name: SHITONG
    Voltage: 380V/50Hz
    Dimension(L*W*H): 15000mm*1200mm*1100mm
    Weight: 12 tons
    any color: as you like
    Usage: Steel Construction
    Raw material: Color Steel Sheet
    Name: automatic roof tile making machine
    Feeding width: as you need
    Control system: PLC(imported Brand)
    Cutting type: Hydralic Cutting
    Thickness: 0.8-1.2mm
    Product name: floor deck tile machine

    Specification:

    ConfigurationsManual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
    Control SystemPLC Panasonic Inverter
    Main Frame450mm H-Beam
    Main Power18.5 kw
    Pump Power15 kw
    Power Supply380V, 3-Phase,50Hz
    Forming Speed10m/min
    Roll Station24 stands
    Roller Diameter95mm
    Hydraulic Pressure18-20MPa
    Forming Size720mm
    Feeding Thickness0.3-0.8mm
    Feeding Width1000mm
    Backboard Thickness22mm
    Chain Size66mm
    Cutter StandardCr12
    Roller StandardCr12
    Cr-Plating Size0.05mm
    Overall Size15000×1200×1100mm
    Total Weight12T

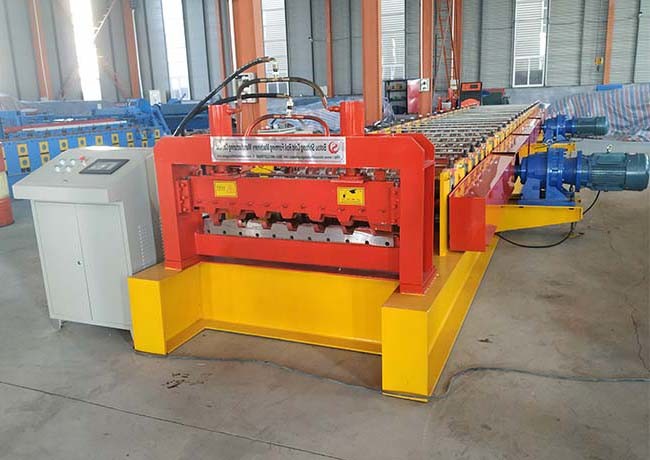

    Machine pictures:
    Power 15 Kw Metal Deck Roll Forming Machine Dimension 15000*1200*1100mm CE CertificationPower 15 Kw Metal Deck Roll Forming Machine Dimension 15000*1200*1100mm CE Certification
