Steel structure metal 688 floor deck roll forming machine use
galvanized floor decking
1. Steel structure metal 688 floor deck roll forming machine use
galvanized floor decking
Features of Floor Decking Roll Forming Line:
The metal deck produced by floor decking roll forming line has high
strength with big wave length.Used on high building, it not only
saves steel mold plate, but also reduces the weight of storey. With
the same bearing capacity, it economized steel and cuts down
investment accordingly.
Applications of Floor Decking Roll Forming Line:
The finished products are widely used in floor flat, after make
embossing of the sheet, it will increase the strength between the
steel , thereby increasing the floor of the fastness.
Process Flow of Floor Decking Roll Forming Line:
Uncoiler -Feeding -Straightening-Roll Forming -Cutting-Exit Rack
2. Steel structure metal 688 floor deck roll forming machine use
galvanized floor decking parameters
| Suitable Material | Material | GI, PPGI, PPGL |
| Width | 1200 mm |
| Thickness | 0.8-1.2 mm |
| Material of rollers | High grade 45# forged steel, surface hard chromium plating |
| Rows of rollers | 24 stations |
| Material of shafts | High grade 45# forged steel |
| Diameter of shafts | 90mm |
| Material of cutting blade | Cr12 Heat Treatment |
| Speed | 15-20 m/min |
| Side plate thickness | 20 mm |
| Chain size | 2 inch |
| Total power | 22 kw |
| Voltage | 380V 50HZ 3Phase |
| Appearance size (About) | 12000mm*1800mm*1700mm |
| Weight(About) | 13 tons |
| Length measurement | Encoder |
| Control mode | Delta PLC |
| Operating mode | Button +Delta Touch screen |
| Machine Components |
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is
a professional manufacturer and exporter that are concerned with
the design, development and manufactur of cold roll forming
machines. We have high quality professional teams, skillful
talents, strong technical force, strong and independent research
and development capabilities, advanced production equipment and a
perfect after-sales service system.
The company is specialized in manufacturing Color steel forming
machinery, C and Z purling machine, Glazed tile forming machine,
steel structural floor panel roll forming machine, sandwich panel
roll forming machine, highway guardrail forming machine, downspout
forming machine, car panel roll forming machine, roll shutter door
roll forming machine, sheet slitting equipment, and other equipment
accessories.
4. Business terms:
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 40 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection
confirmation before shipment.
Delivery Time
Within 35 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of
the equipment.
If some parts of machine broken within 2 year, we will give
customer the spare parts for free. (include chain, bearing,
roller,oil pipe, counting wheel) If more than 2 year, maybe some
spare parts need to be charged. If machine can not work well, we
can teach them online until the machine is perfect. If you need, we
can go to your place to assist you. But you need to provide the
cost of the engineer.
5. FAQ(about our roll forming machine)
1) Q: How to choose the machine,any information i need to offer?
A: You need to provide the product drawings.
2) Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers
specifications, using top brand name components.
3) Q: Do you provide customized?
A: Sure, we can design the equipment according to the data of the
structural section you provide. We are professional sheet metal
forming machine designer and manufacturer.
4) Q: What can you do if the machine broken?
A; Our machine's warranty period is 12months. if the broken parts
can't repair, we can send the new parts replace the broken parts,
but you need pay the express cost by yourself. if after warranty
period, we can through negotiation for solving the problems, and we
supply the technical support for the whole life of the equipment.
5) Q::Do you accept private label? Customize logo printed or
package ?
A:Yes,they are all welcome as your request.

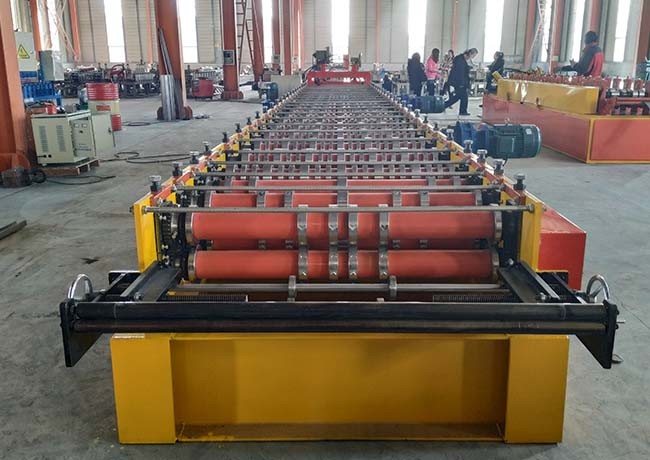

6. Roll forming machine pictures:
