Easy install steel roofing sheet standing seam roll forming machine
with hydraulic system
1. Easy install steel roofing sheet standing seam roll forming
machine with hydraulic system
---- Standing seam panel is a very popu;ar roofing for the
industial building.
---- We have our standard design, meanwhile accept customized
design, we also provide OEM service.
---- Our machine have exported all over the world, many good
reputations help us to get more and more orders.
---- We provide machine design, machine produce, machine delivery,
machine installation service, ensure customer can use the machine
no any problems.
2. Easy install steel roofing sheet standing seam roll forming
machine with hydraulic system parameters
| Raw material |
| Material | Colored steel sheet, galvanized steel sheet, aluminum sheet |
| Thickness of coil sheet | 0.2-0.8 mm |
| Material expand width | 1000 mm |
| Efficiency width | 750 mm |
| Machine details |
| Roller material | High grade NO. 45 forged steel with 0.05mm hard chrome plating |
| Shaft material | High grade NO. 45 carbon wrought steel |
| Cutting blade | Cr12 mould steel with quenched treatment |
| Diameter of shaft | 70mm or as your requirement |
| Main frame | 300 H steel |
| Forming steps | 15 stations |
| Productivity | 8-12 m/min |
| Hydraulic station power | 4+4KW |
| Hydraulic pressure | 10-12MPa |
| Appearance size | 7600mm*1500mm*1500mm |
| Weight | 8-10tons |
| Hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirement |
| Cut Mode | Hydraulic forming after cutting off |
| Cutter materia | Cr12 Heat Treatment |
| Electronic control system | PLC, Touch Screen, Encoding counter |
| Color | Blue, green or yellow or as your requirement |
| Rolling material | 45# steel,roller surfaces polishing, hard plating |
| Machine Components |
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is
a professional manufacturer and exporter that are concerned with
the design, development and manufactur of cold roll forming
machines. We have high quality professional teams, skillful
talents, strong technical force, strong and independent research
and development capabilities, advanced production equipment and a
perfect after-sales service system.
The company is specialized in manufacturing Color steel forming
machinery, C and Z purling machine, Glazed tile forming machine,
steel structural floor panel roll forming machine, sandwich panel
roll forming machine, highway guardrail forming machine, downspout
forming machine, car panel roll forming machine, roll shutter door
roll forming machine, sheet slitting equipment, and other equipment
accessories.
4. Comapny advantage:
a. We as a manufacturer are Specialized in all kinds of cold roll
forming machine since 2004.So for the design and produce there are
much experience and professional people.
b. Customers’design, color and logo are also accepted! Our
specialized experts and skilled workers keep devoting their hard
working to ensure the machine with high quality.
c. Schneider PLC system:Ensuring high accuracy and easy to
operate!Full Automatic: Just input length of the sheets and numbers
of the piece you need, then the machine will start to work as your
order.
d. Our machines exported to the Southeast Asia, Middle East,
Africa, North & South America more than twenty countries and
regions.We have professional team, complete production system, high
quality products, good service.
e. Within the ONE-YEAR period, we could supply you the replacement
parts free of charge for any damaged parts caused by quality
problems.
5. FAQ
Q1:Are you trading company or factory?Can we visit your factory?
A:We have our own production line and factory.Warmly welcome to our
factory. Once we have your schedule, we will arrange the
professional sales team to follow up your case.
Q2: What's your after-sale service?
A: We'll provide engineer overseas service to help you install and
debug the machine,in addition,free replacement of parts in one year
warranty.
Q3: How is your Payment Term?
A:T/T,L/C ,Western Union
Q4: What’s your delivery time?
A:Normally it is about 45 days, but we will delivery as soon as
possible
Q5:How about the trade terms?
A:EXW,FOB,CFR,CIF will be accepted.
Q6:Do you accept private label? Customize logo printed or package ?
A:Yes,they are all welcome as your request.

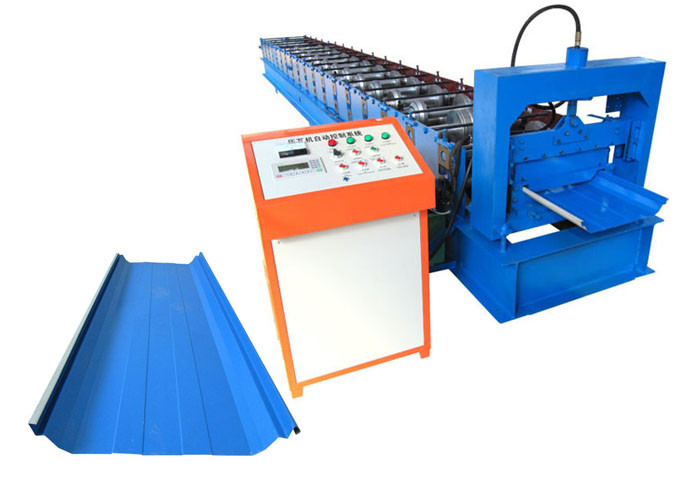

6. Roll forming machine pictures:
