    Easy Operate Floor Deck Roll Forming Machine Effective Width 1000mm For Building Construction

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : floor deck
    Certification : CE/ISO9001
    Price : Contact us for more information
    Payment Terms : L/C,T/T
    Supply Ability : 19 sets/month
    Delivery Time : 59 working days
    • Product Details
    • Company Profile

    Easy Operate Floor Deck Roll Forming Machine Effective Width 1000mm For Building Construction

    1000mm effective width floor steel metal deck roll forming machine line for building construction


    1. Usage And Introduction Of This Production Line


    The complete floor deck roll forming machine includes manual decoiler, main body of roll forming machine, hydraulic cutting system, PLC control system and discharge table. The users can set order as per their requirement to produce the special pieces and length products. This machine line can work automatically by PLC control system. It is easy to operate and running stably.


    The components of the roll forming machine line includes:

    Hydraulic decoiler ( 5 Tons )1 unit
    Main Roll Forming Machine1 unit
    Cutting Device1 unit
    Electrical System with PLC Control1 unit
    Hydraulic station2 unit
    Auto stacker1 unit

    2. The roll forming machine parameters

    NoItemParameter
    01Material feeding width925~1250mm
    02Material thickness0.8~1.3mm
    03UncoilerManual Uncoiler
    04Loading weight5ton
    05Forming speed8-15m/min
    06Forming Steps26~35 stations
    07Shafts materials45# high quality steel
    08Shafts diameter76mm
    09Roller materials45# high quality steel, hard chrome coated 0.05mm
    10TransmissionChains-sprockets
    11Main motor power2x11kw
    12Cutting bladeCr12 with quenched treatment 60-62
    13Hydraulic power4kw
    14This machine will automatically measure and cut the length and quantity as per clients set on the PLC touch screen
    15Length cut Accuracy±1mm
    16PLC control systemOmron Japan
    17Frequency converterTAIAN
    18ScreenTouchWin
    19Voltage380V/50HZ/3Phase
    20Total weightApprox 15t
    21Overall dimensions15600x1500x1300mm
    3. Who we are and what we do

    BOTOU SHITONG MACHINERY MANUFACTURING CO.,LTD.(hereinafter referred to as SHITONG) is founded in 2001 and specialized in designing, manufacturing, installation, debugging kinds of Metal Panel Roll Forming Machines. SHITONG is a private enterprise with many years’ experience in this field. We have developed many new style Profile Forming Equipment, which enriches our products, makes our machinery more reasonable, artistic and practical. Therefore, we obtain the consistently high praise of new and regular customers.


    4. After sales service of the roll forming machine production line

    1>. Free technical support and free accessories supply.

    2>. Engineer available to service machinery overseas.

    3>. One year warranty is provided.

    4>. Long life technical guidance for free.

    5>. We always offer technical support, quick response, all your inquire will be replied in 24 hours.

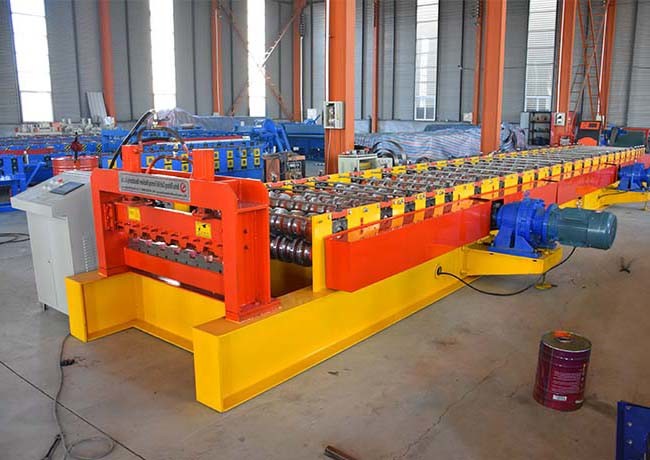

    5. Roll forming machine pictures:

    Easy Operate Floor Deck Roll Forming Machine Effective Width 1000mm For Building ConstructionEasy Operate Floor Deck Roll Forming Machine Effective Width 1000mm For Building ConstructionEasy Operate Floor Deck Roll Forming Machine Effective Width 1000mm For Building Construction


    6. FAQ

    Q1, We bought your roll forming machine line, but we couldn't install and debug it?
    A1, Don't worry about that, when finished the machine, we will send you the manual book which shows you how to use the machine; if you still don't know, we can record a video to teach you how to operate the machine.

    Q2, How to maintenance?
    A2, If using frequently,best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.

    Q3, How many workers operate this machine to manufacture?
    A3, Only 1-2 worker is enough, the machine line is full automatic with PLC control system. After you set the order, the machine can produce automatically.
