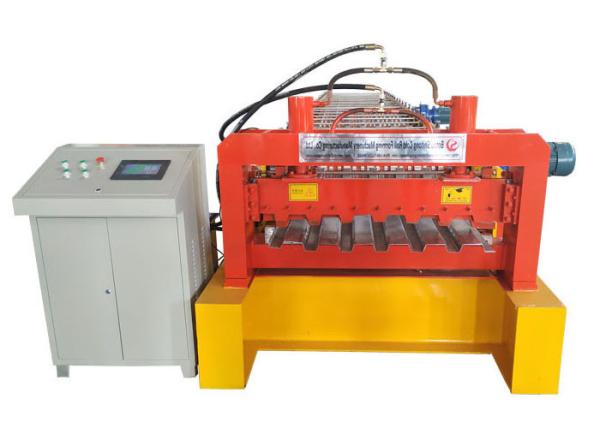

    Galvanized Steel Deck Forming Machine , Floor Tiles Manufacturing Machines Chain Size 2 Inch

    Ask Lasest Price
    Brand Name : ST
    Model Number : 914
    Certification : CE ISO SGS
    Price : contact me
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15 sets per month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Galvanized Steel Deck Forming Machine , Floor Tiles Manufacturing Machines Chain Size 2 Inch

    galvanized steel design 914 roofing floor Floor Deck Roll Forming Machine


    Production Process:


    Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving


    Technical parameters:


    Suitable MaterialMaterialGI, PPGI, PPGL
    Width1200 mm
    Thickness0.8-1.2 mm
    Material of rollersHigh grade 45# forged steel, surface hard chromium plating
    Rows of rollers24 stations
    Material of shaftsHigh grade 45# forged steel
    Diameter of shafts90mm
    Material of cutting bladeCr12 Heat Treatment
    Speed15-20 m/min
    Side plate thickness20 mm
    Chain size2 inch
    Total power22 kw
    Voltage380V 50HZ 3Phase
    Appearance size (About)12000mm*1800mm*1700mm
    Weight(About)13 tons
    Length measurementEncoder
    Control modeDelta PLC
    Operating modeButton +Delta Touch screen

    Manual Decoiler

    Capacity5T
    Inner Diameter450-550mm
    Width1250mm

    FAQ

    Q1. What's your payment terms and delivery time?
    A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

    After we get down payment, we will arrange production. About 30-45 days for delivery.

    Q2. Do you have after-sales support?
    A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

    Q3. Do you sell only standard machines?
    A3: No, most of our machines are built according to customers specifications, using top brand components.
