    PLC Control System Floor Deck Roll Forming Machine For Construction Building

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 720
    Certification : ISO,CE
    Price : Contact us get the best price
    Payment Terms : L/C,T/T
    Supply Ability : 20sets/month
    Delivery Time : 40-60 days
    • Product Details
    • Company Profile

    PLC Control System Floor Deck Roll Forming Machine For Construction Building

    720 galvanized floor deck roll forming machine for construction bulilding


    1. 720 galvanized floor deck roll forming machine for construction bulilding


    Our metal floor deck roll forming machine is totally controlled by PLC. Therefore, only by inputting related production data, such as number of products, length and punching dimension, you can start this machine to do manufacturing. Thanks to the easy manufacture process and excellent performance, our machines are widely appreciated.


    2. 720 galvanized floor deck roll forming machine for construction bulilding parameters


    Suitable MaterialMaterialGI, PPGI, PPGL
    Width1200 mm
    Thickness0.8-1.2 mm
    Material of rollersHigh grade 45# forged steel, surface hard chromium plating
    Rows of rollers24 stations
    Material of shaftsHigh grade 45# forged steel
    Diameter of shafts90mm
    Material of cutting bladeCr12 Heat Treatment
    Speed15-20 m/min
    Side plate thickness20 mm
    Chain size2 inch
    Total power22 kw
    Voltage380V 50HZ 3Phase
    Appearance size (About)12000mm*1800mm*1700mm
    Weight(About)13 tons
    Length measurementEncoder
    Control modeDelta PLC
    Operating modeButton +Delta Touch screen

    Machine Components
    No.NameQTY
    1Manual uncoiler1 set
    2Feeding and leveling device1 set
    3Roll forming system1 set
    4Hydraulic punching and cutting1 set
    5Product support frame1 set
    6PLC Control System1 set

    3. roll forming machine company profiles

    Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


    The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.


    4. Business terms:


    Packing Method

    Main machine is packaged with plastic film

    Transportation

    All machines need one 40 feet container to hold

    Payment Term

    30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

    Delivery Time

    Within 35 days after receiving deposit.

    Warranty

    Two years, and we will provide technical support for wholelife of the equipment.

    If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.


    5. FAQ(about our roll forming machine)


    1) Q:What is the MOQ?

    A:For roll forming machine,the MOQ is one set.

    2) Q: Do you sell only standard machines?

    A: No, most of our machines are built according to customers specifications, using top brand name components.

    3) Q: Do you provide customized?

    A: Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.

    4) Q: What can you do if the machine broken?

    A; Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.

    5) Q::Do you accept private label? Customize logo printed or package ?

    A:Yes,they are all welcome as your request.

    6) Q. What's your payment terms and delivery time?

    A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspectthe machine well and before delivery. Of course your payment terms are acceptable.After we get down payment, we will arrange production. About 30-45 days for delivery.

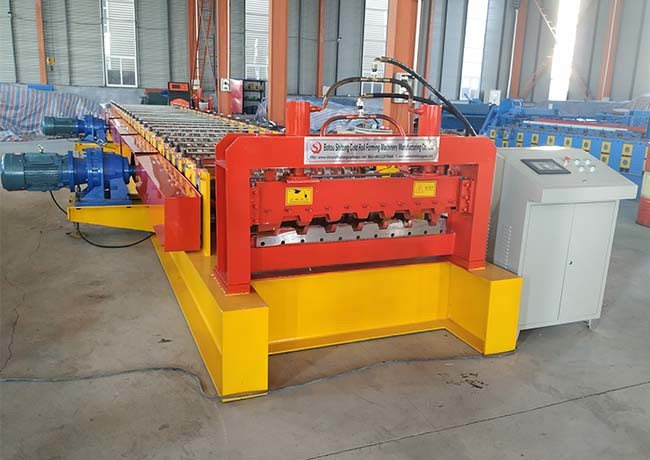

    6. Roll forming machine pictures:

    PLC Control System Floor Deck Roll Forming Machine For Construction BuildingPLC Control System Floor Deck Roll Forming Machine For Construction BuildingPLC Control System Floor Deck Roll Forming Machine For Construction Building
