Light steel framing machine customized making kinds of metal keel
sheets roll forming production line
1. Usage And Introduction Of This Production Line
This type of forming machine line includes various kinds of roof
panel forming machines, wall panel forming machines, and lining
plate forming machines , C Z purlin roll forming machines, guard
rail roll forming machines, metal deck roll forming machines, guide
rail roll forming machines etc. It has received 3 patents of
utility model and is widely used in steel construction enclosure.
We can provide roll forming equipment in various profile shapes and
configurations to satisfy your specific requirements.
Our roll forming machine can be profile customized,and are lower
cost,high efficiency,reliable working ,low energy consumption.we
can do any type of equipment according to customer requirements.
| uncoiler | 1set |
| coil sheet guiding device | 1set |
| main roll forming system | 1set |
| punching device | 1set |
| cutting device | 1set |
| Hydraulic station | 1set |
| PLC control system | 1set |
| support table | 1set |
2. The roll forming machine parameters
| Item | Parameters |
| According to buyer's requirements |
| Raw material | Type | Color plate, aluminium plate, galvanized plate |
| Thickness(mm) | 0.45-0.8 |
| Width of the feeding material | According to buyer's final confirmed profile drawing |
| Yield strength(Mpa) | 230-550 |
| Forming speed(m/min) | 12-15 (not contain cutting) |
| Roller material | 45 # sheet with chrome coated |
| Roller driven type | Chain transmission |
| Control System | PLC (Panasonic) as list in the note |
| Operation type | Touch screen + button |
| Hydraulic system pressure( MPa ) | 10-12 |
| Hydraulic motor power ( KW ) | 4 |
| Main motor power(KW) | 7.5 |
| Roller Stations | Top layer: 20 stations
Bottom layer: 22 stations |
| Shaft Material and DIA | 76mm, material is 45 # forge steel |
| Roller Material | 45# forge steel, coated with chrome |
| Electric Source | 380V, 50HZ,3 phase
According to customer’s require |
| Material Of Cutting | Cr12Mov quenching 58-62℃ |
| Dimension(L*W*H) | Forming Section about 11.0m*1.7m*1.6m |
| Weight of machine | About 5~8 tons |
3. Some relative terms we can provide:
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai,
Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa,
Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
4. Our service about the roll forming machine
(1) Once you paid the deposit, we will start the production as soon
as possible. When the machine is finished, you can come to check
the machine, we will arrange your accommodation and relative
schedule. If you don't come, we can test the machine and send you
test video. It's no problem.
(2) If the buyer need overseas debug, we can also send technician
to your factory, the customer should undertake all related cost
including the accommodation and round-trip ticket of technician:
100 USD/day . The buyer should make sure the safety of technician.

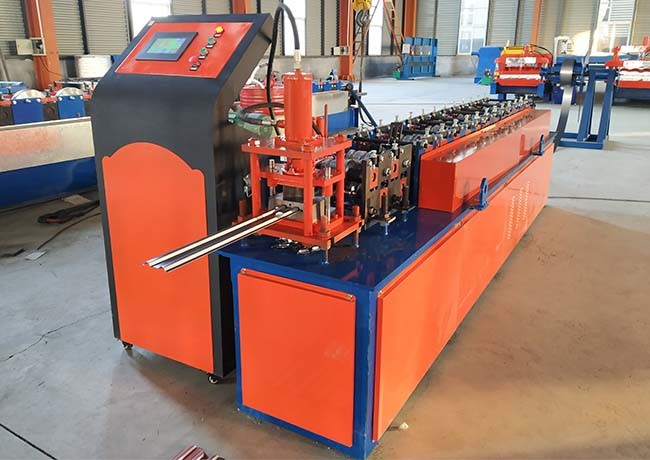

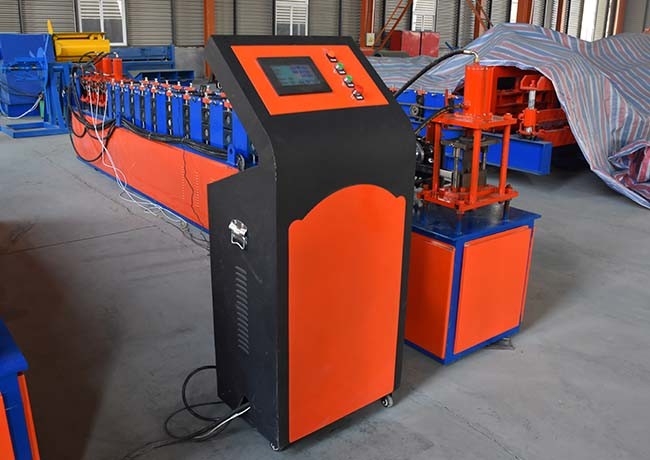

5. Roll forming machine pictures:
