    Color Steel Rolling Shutter Profile Machine , Mould Cutting Door Panel Roll Forming Machine

    Ask Lasest Price
    Brand Name : shitong
    Model Number : ST 180
    Certification : CE/ ISO9001
    Price : contact me to get the lowest price
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 35 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Color Steel Rolling Shutter Profile Machine , Mould Cutting Door Panel Roll Forming Machine

    Full automatic color steel profie sheet roller making machine line mould cutting shutter door roll forming machine


    Quick Details

    Warranty: 1.5 years

    Type: Tile Forming Machine

    Production Capacity: 15-20m/min

    Certification: CE/ISO9001

    Applicable Industries: Manufacturing Plant

    Condition: New

    Tile Type: Colored Glaze Steel

    Use: Roof, shutter door

    Place of Origin: Hebei, China (Mainland)

    Voltage: 380V 50Hz 3phases

    Dimension(L*W*H): 4500*1300*1100

    Weight: 1.8 Tons

    Main motor power: 4kw+5.5kw

    Roller material: High-grade 45# Steel,heated and quenched

    Drive: by chain(1 inch)

    Operation: Touch Screen


    machine parameters:

    Suitable materialColor steel sheet , galvanized steel sheet,
    Main motor power5.5KW with Cycloidal reducer
    Hydraulic station power4KW
    Hydraulic oil40#
    Thickness0.3mm~0.8mm
    DiameterΦ45mm
    Electric tension380V 3phase 50HZ
    Material of rollerHigh grade 45# forged steel
    Rolling galvanization thickness0.05mm
    Processing speed12-15m/min
    Processing precision within10m+/-1.00mm
    Material of cutting bladeCr12 quenched

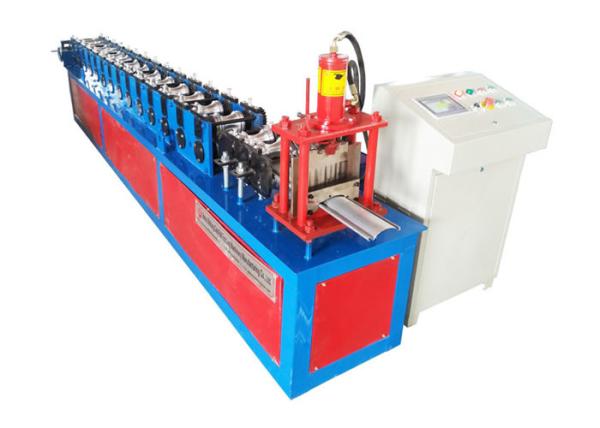

    machine pictures:

    Color Steel Rolling Shutter Profile Machine , Mould Cutting Door Panel Roll Forming MachineColor Steel Rolling Shutter Profile Machine , Mould Cutting Door Panel Roll Forming Machine

    Color Steel Rolling Shutter Profile Machine , Mould Cutting Door Panel Roll Forming Machine

    Quality Color Steel Rolling Shutter Profile Machine , Mould Cutting Door Panel Roll Forming Machine for sale
