    Color Sheet Double Layer Roll Forming Machine Productivity 20-25 M/Min Shaft Diameter 70mm

    Ask Lasest Price
    Brand Name : ST
    Model Number : 960
    Certification : CE, ISO
    Price : contact the sales,she will give you the best offer
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 set per month
    Delivery Time : 30-40 work days
    • Product Details
    • Company Profile

    Color Sheet Double Layer Roll Forming Machine Productivity 20-25 M/Min Shaft Diameter 70mm

    steel roofing panel color sheet double layer roll forming machine equipment


    1. Company information


    BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.


    2. Technical parameters:


    Raw material

    material speccolored steel sheet, galvanized steel sheet, aluminum sheet
    thickness of coil sheet0.2-0.8 mm
    material expand width1250mm

    Machine details

    roller materialhigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    shaft materialhigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft70mm
    main frame350 H steel
    forming steps

    Up layer:11 rows

    Down layer:13rows

    productivity20-25m/min
    hydraulic station power5.5 KW
    hydraulic pressure10-12MPa
    controlling systemfamous PLC computer control
    material of cutting tableCr 12 mould steel with quenched treatment
    appearance size6700mm*1500mm*1510mm
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirements

    Device Configuration

    Nonumber
    (1)Manual decoiler1 set
    (2)Guiding device1 set
    (3)Main roll forming machine1 set
    (4)Hydraulic cutting device1 set
    (5)PLC electric control system1 set
    (6)Hydraulic driving system1 set
    (7)Special tools and parts1 set

    • Hydraulic system
    • Description

    • The main valve parts adopt domestic high-quality brand.
    • Oil cylinder and oil pump adopt national standard rod oil cylinder, easy to purchase all over the world.
    • The motor is national standard copper core, universal around the world.
    • Characteristic

    • The hydraulic system after optimization design, compact structure, with beautiful appearance
    • Stable performance and good durability.

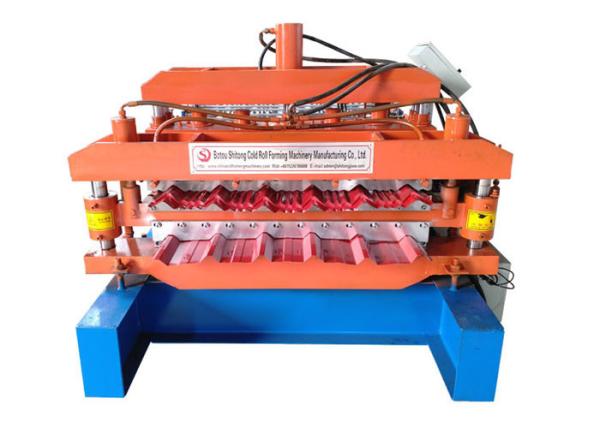

    3. Machine picture
    Color Sheet Double Layer Roll Forming Machine Productivity 20-25 M/Min Shaft Diameter 70mmColor Sheet Double Layer Roll Forming Machine Productivity 20-25 M/Min Shaft Diameter 70mmColor Sheet Double Layer Roll Forming Machine Productivity 20-25 M/Min Shaft Diameter 70mm
    4. Installation and training:

    A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.

    B. Without visiting, we will send you user manual and video to teach you to install and operate.

    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.


    5. FAQ

    1. You are the manuafacturer or trading company ?

    A: We are the professional manufacturer , and we have more than 20 years professional experiece in the field of roll forming machine.

    2. Can you make the machine according to my design or photo type?

    A: Yes. We have an experienced team to work out the most suitable design and production plan

    for the machine.
    3. How can we be assured that you will deliver us quality machine with spare parts?

    A:1. Customers to send the technical people to our factory for checking the quality.

    2. We can send the technicians to the buyer`s factory for the installation of the machine.
    4. What policy of your garentee?

    A: Within the One-YEARS period, we could supply you the replacement parts free of charge

    for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
