Rib roof and roof tile double layer roll forming machine have
hydrualic driving system
1. Rib roof and roof tile double layer roll forming machine have
hydrualic driving system
---- Machine package by plastic film, laoding in container,
gennerally we delivery machine by sea.
---- In order to get high quality product, our machine adopts
welded steel frame structure, AC frequency conversion motor reducer
drive, chain transmission, roller surfaces polishing, hard plating,
heat treatment and chrome coating..
---- Hydraulic Station is derived by a Gear Pump. After filling the
hydraulic oil into the hydraulic oil tank, the pump could drive the
hydraulic cylinder to realize the cutting function..
---- Shearing Mechanism adopts the hydraulic drive and automatic
location to decide the dimension and cut the target products
2. Rib roof and roof tile double layer roll forming machine have
hydrualic driving system parameters
| Raw material |
| Material | Colored steel sheet, galvanized steel sheet, aluminum sheet |
| Thickness of coil sheet | 0.3-0.8 mm |
| Material expand width | 940 mm/1000mm/1200mm |
| Efficiency width | 762-760 mm/840-910mm/1000-1050mm |
| Machine details |
| Roller material | High grade no. 45 forged steel with 0.05mm hard chrome plating |
| Shaft material | High grade no. 45 carbon wrought steel |
| Cutting blade | Cr12 mould steel with quenched treatment |
| Diameter of shaft | 70mm |
| Main frame | 300 H steel |
| Forming steps | Up layer:11 stations Down layer:13 stations |
| Productivity | 20-25m/min |
| Hydraulic station power | 5.5kw |
| Hydraulic pressure | 10-12mpa |
| Appearance size | 6500mm*1500mm*1500mm |
| Weight | 4.5 tons |
| Hydraulic oil | 40# hydraulic oil |
| Electric tension | 380v 50 hz 3 phase or as your requirement |
| Cut mode | Hydraulic forming after cutting off |
| Cutter materia | Cr12 heat treatment |
| Electronic control system | Plc, touch screen, encoding counter |
| Color | Blue, green or yellow or as your requirement |
| Rolling material | 45# steel,roller surfaces polishing, hard plating |
| Machine Components |
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is
a professional manufacturer and exporter that are concerned with
the design, development and manufactur of cold roll forming
machines. We have high quality professional teams, skillful
talents, strong technical force, strong and independent research
and development capabilities, advanced production equipment and a
perfect after-sales service system.
The company is specialized in manufacturing Color steel forming
machinery, C and Z purling machine, Glazed tile forming machine,
steel structural floor panel roll forming machine, sandwich panel
roll forming machine, highway guardrail forming machine, downspout
forming machine, car panel roll forming machine, roll shutter door
roll forming machine, sheet slitting equipment, and other equipment
accessories.
4. Business terms:
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 40 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection
confirmation before shipment.
Delivery Time
Within 35 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of
the equipment.
If some parts of machine broken within 2 year, we will give
customer the spare parts for free. (include chain, bearing,
roller,oil pipe, counting wheel) If more than 2 year, maybe some
spare parts need to be charged. If machine can not work well, we
can teach them online until the machine is perfect. If you need, we
can go to your place to assist you. But you need to provide the
cost of the engineer.
5. FAQ(about our roll forming machine)
1. Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers
specifications, using top brand name components.
2. Q: What size decoiler can you supply us with?
A: From 5-ton decoiler to a 25-ton motorized hydraulic decoiler
3. Q: How to visit your company?
A: a.Fly to Beijing airport: By high speed train From Beijing Nan
to Cangzhou Xi (1 hour), then we can pick up you.
b. Fly to Shanghai Airport: By high speed train From Shanghai
Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4.Q: What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts
can't repair,we can send the new parts replace the broken parts
freell,but you need pay the express cost yourself.if after warranty
period,we can through negotiationfor to solve the problems,and we
supply the technical support for the whole life of the equipment.

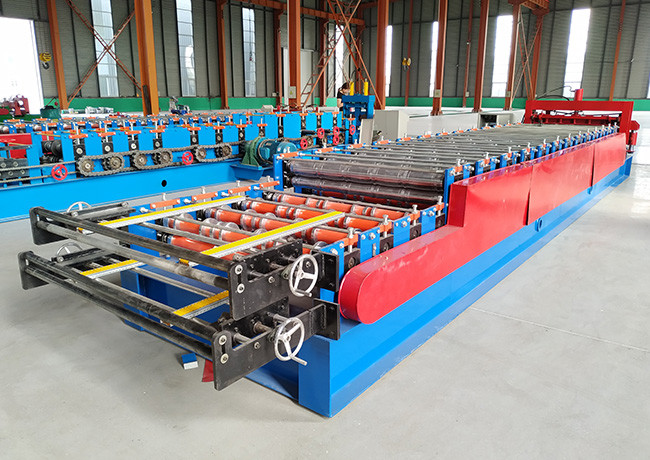

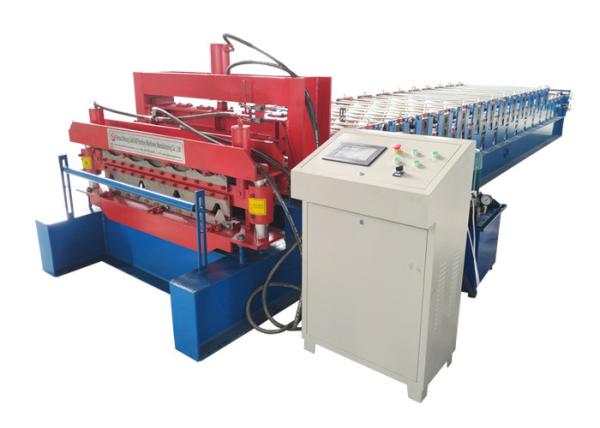

6. Roll forming machine pictures:
