    Rib Roof / Corrugated Sheet Roll Forming Machine Weight 9600kg With PLC Touch Screen

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 1050/988
    Certification : ISO,CE
    Price : Contact us get the best price
    Payment Terms : L/C,T/T
    Supply Ability : 20sets/month
    Delivery Time : 40-60 days
    • Product Details
    • Company Profile

    Rib Roof / Corrugated Sheet Roll Forming Machine Weight 9600kg With PLC Touch Screen

    Corrugated sheet and rib roof double layer roll forming machine with PLC touch screen


    1. Corrugated sheet and rib roof double layer roll forming machine with PLC touch screen


    ---- The machine can be used to produce 2 different profiles of corrugated steel sheet, e.g. 2 wall &roof sheets, or 1 wall & roof sheet and 1 floor decking sheet. Customer can choose the type..

    ---- Our machining part tolerance to be 0.8mm due to 18 sets CNC machines on site. All the rollers and shafts are solid.

    ---- We cooperate with Maersk,APL,CMA,EMC,MSC, and PIL etc, 32 big shipping companies.

    ---- We are Professional rollf orming factory which have more than 10 years manufacturing experience in cold roll forming machinery.


    2. Corrugated sheet and rib roof double layer roll forming machine with PLC touch screen parameters


    Raw material
    MaterialColored steel sheet, galvanized steel sheet, aluminum sheet
    Thickness of coil sheet0.3-0.8 mm
    Material expand width940 mm/1000mm/1200mm
    Efficiency width762-760 mm/840-910mm/1000-1050mm
    Machine details
    Roller materialHigh grade no. 45 forged steel with 0.05mm hard chrome plating
    Shaft materialHigh grade no. 45 carbon wrought steel
    Cutting bladeCr12 mould steel with quenched treatment
    Diameter of shaft70mm
    Main frame300 H steel
    Forming steps

    Up layer:11 stations

    Down layer:13 stations

    Productivity20-25m/min
    Hydraulic station power5.5kw
    Hydraulic pressure10-12mpa
    Appearance size6500mm*1500mm*1500mm
    Weight4.5 tons
    Hydraulic oil40# hydraulic oil
    Electric tension380v 50 hz 3 phase or as your requirement
    Cut modeHydraulic forming after cutting off
    Cutter materiaCr12 heat treatment
    Electronic control systemPlc, touch screen, encoding counter
    ColorBlue, green or yellow or as your requirement
    Rolling material45# steel,roller surfaces polishing, hard plating

    Machine Components
    No.NameQTY
    1Manual uncoiler1 set
    2Feeding and leveling device1 set
    3Roll forming system1 set
    4Hydraulic punching and cutting1 set
    5Product support frame1 set
    6PLC Control System1 set

    3. roll forming machine company profiles


    Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


    The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.


    4. Business terms:


    Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

    Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF

    Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow

    Nearest Port:Tianjin port


    5. FAQ(about our roll forming machine)


    1. Q: How to visit our company:

    A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station

    (1hour), then we can pick up you to factory(40min).

    Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west station(4.5 hours), then we can pick up you to factory(40min).


    2. Q: What should I provide if I want to customized machine?

    A: U need provide profile drawing, material, thickness, voltage and your special requirements.


    3. Q: What is the Warranty?

    A: Within 12 mounts, all technicals are ready to serve you at any time.


    4. Q: What can you do if the machine broken?

    A: Our machine's warranty period is 12 months, if the broken parts can't repair, we will send new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.


    5. Q: If need technician to workshop to debug and teach, how to do?

    A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.


    6. Q:Are you trading company or factory?Can we visit your factory?

    A:We have our own production line and factory.Warmly welcome to our factory. Once we have your schedule, we will arrange the professional sales team to follow up your case.

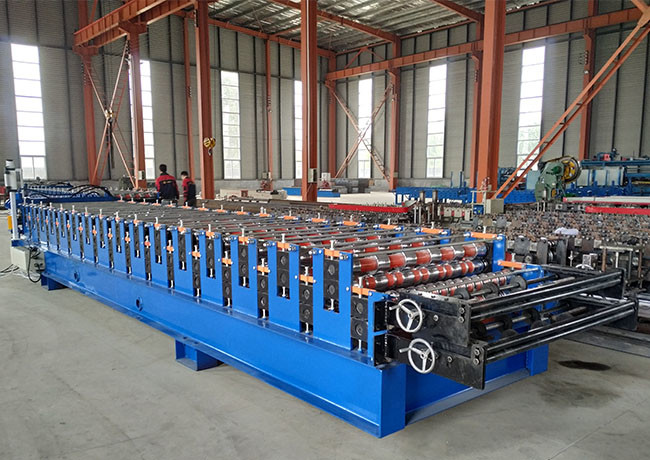

    6. Roll forming machine pictures:

    Rib Roof / Corrugated Sheet Roll Forming Machine Weight 9600kg With PLC Touch ScreenRib Roof / Corrugated Sheet Roll Forming Machine Weight 9600kg With PLC Touch ScreenRib Roof / Corrugated Sheet Roll Forming Machine Weight 9600kg With PLC Touch Screen
