    Galvanized Coil Double Layer Roll Forming Machine Material Thickness 0.3-0.8mm

    Ask Lasest Price
    Brand Name : shitong
    Model Number : D914-863
    Certification : ce/iso9001
    Price : 11000$
    Payment Terms : L/C, T/T
    Supply Ability : 30 sets/ month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Galvanized Coil Double Layer Roll Forming Machine Material Thickness 0.3-0.8mm

    Roof Use Double Layer Corrugated Profile Steel Roofing Sheet Roll Forming Machine Roof Tile Making Machine


    Quick Details

    Warranty: 24 Months

    Type: Tile Forming Machine

    Production Capacity: 15-20m/min

    Certification: CE/ISO9001

    Applicable Industries: Manufacturing Plant

    Tile Type: Colored Glaze Steel

    Place of Origin: Hebei, China (Mainland)

    Voltage: 380V 50Hz 3phases

    Weight: 6.5T

    Key Selling Points: Long Service Life

    Raw material: Color Steel Sheet,galvanized coil,aluminum

    Control system: PLC(imported Brand)

    Roller material: High Grade 45# Steel,quenched,heat-treatment and hard chrome 0.05mm

    Roller stations: 18/18 Stations,different profile with different stations

    Shaft material: High Grade 45# Forging Steel,quenched and heat-treatment

    Usage: Roof or Wall panel

    Material Thickness: 0.3mm-0.8mm

    Sidewall thickness: 18mm

    Main motor power: 5.5Kw

    Cutting blade material: Cr 12 Mov,Quenched


    PRODUCT DESCRIPTION


    SPECIFICATIONS FOR ROOF SHEET ROLL FORMING MACHINE
    Raw Materialfeeding widthmmup layer 1000
    down layer 1000
    effective widthmmup layer 820
    down layer 836
    thicknessmm0.3-0.8
    Main Roll Forming Machineroller material45# steel plated with chrome
    diameter of shaftmm70
    roller stationstepsup layer 16
    down layer 16
    Main Configurationmain motor powerkw5.5
    hydraulic station powerKw4
    control systemPLC brandMitsubishi

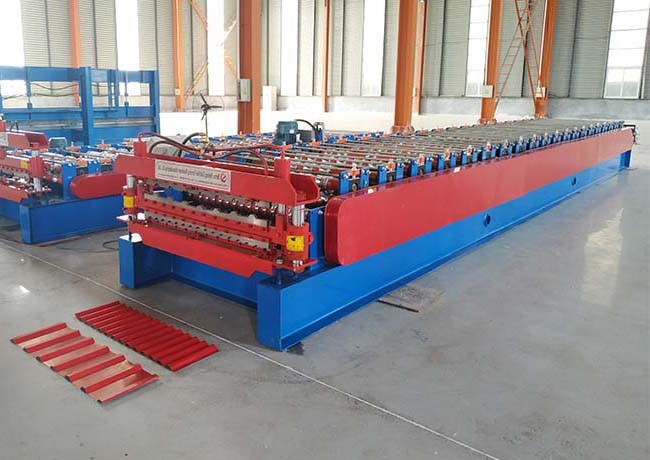

    machine pictures:

    Galvanized Coil Double Layer Roll Forming Machine Material Thickness 0.3-0.8mmGalvanized Coil Double Layer Roll Forming Machine Material Thickness 0.3-0.8mmGalvanized Coil Double Layer Roll Forming Machine Material Thickness 0.3-0.8mm
