    PPGI Color Steel Roll Forming Machine , Corrugated Roof Sheet Machine With Smooth Feed Plate

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 836
    Certification : ISO,CE
    Price : Contact us get the best price
    Payment Terms : L/C,T/T
    Supply Ability : 20sets/month
    Delivery Time : 40-60 days
    • Product Details
    • Company Profile

    PPGI Color Steel Roll Forming Machine , Corrugated Roof Sheet Machine With Smooth Feed Plate

    PPGI color steel roofing sheet corrugated sheet roll forming machine with smooth feed plate

    1. PPGI color steel roofing sheet corrugated sheet roll forming machine with smooth feed plate


    ---- The finally products of this machine is corrugated roofing sheet. This sheet use for roofing and wall for industrial plant or house.

    ---- Feeding the PPGI coil into this machine, after automatic running, the out put products is a beautiful corrugated sheet.

    ---- This machine suitable 0.3-0.8mm sheet, working speed can be 8-12m/min.

    ---- We also accept customized machine, we make the machine special for every customer.


    2. PPGI color steel roofing sheet corrugated sheet roll forming machine with smooth feed plate parameters

    Item NameSpecification
    Processing materialColor steel coil, Galvanized coil, Aluminized zinc coil or as your customized
    Processing thickness (mm)0.3-0.8mm or as your customized
    Material of rollersHigh grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm
    Material of shafts45# steel
    Diameter of shafts70mm or as your customized
    Forming speed8-12 m/min or as your customized
    Under frame350 H-beam
    Sidewall16mm
    Connect bar25mm, zinc plated
    Forming steps10-18 or as your customized
    Control systemDelta PLC and Inverter
    Suitable power380V, 50 Hz, 3 phase or according to your need
    Drive modeChain and sprocket, chain size 1 inch
    Main motor3-5.5kw
    Hydraulic pump station3-5.5kw
    Cutting modelHydraulic profile cutting
    Dimension of the machine7.5m-11m×1.5mm×1.2m
    Weight of the machine3.5 ton -6 ton

    Machine Components
    No.NameQTY
    1Manual uncoiler1 set
    2Feeding and leveling device1 set
    3Roll forming system1 set
    4Hydraulic punching and cutting1 set
    5Product support frame1 set
    6PLC Control System1 set

    3. roll forming machine company profiles

    Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


    The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.


    4. Business terms:


    Packing Method

    Main machine is packaged with plastic film

    Transportation

    All machines need one 40 feet container to hold

    Payment Term

    30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

    Delivery Time

    Within 35 days after receiving deposit.

    Warranty

    Two years, and we will provide technical support for wholelife of the equipment.

    If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.


    5. FAQ(about our roll forming machine)


    1. Is this machine only can produce one design?

    Yes. But you can set up any length of the sheet in the machine control system.

    2. Which country have you ever export to?

    Our customer from all overy the world, almost in every continent, we all have customers.

    3. What's your payment terms and delivery time?

    30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspectthe machine well and before delivery. Of course your payment terms are acceptable.After we get down payment, we will arrange production. About 30-45 days for delivery.

    4. How to visit your company?

    a. Fly to Beijing airport: By high speed train From Beijing Nan to CangZhou Xi (1 hour), then we can pick up you.

    b. Fly to Shanghai Airport: By high speed train From Shanghai HongQiao to Cangzhou Xi(4.5 hours), then we can pick up you.

    5. What can you do if the machine broken?

    Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

    6. Can you be responsible for transport?

    Yes,please tell me the destination port or address.we have rich experience in transport.

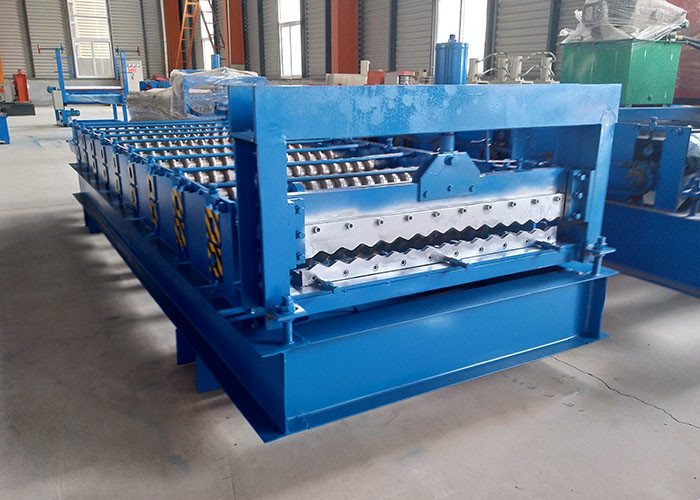

    6. Roll forming machine pictures:

    PPGI Color Steel Roll Forming Machine , Corrugated Roof Sheet Machine With Smooth Feed PlatePPGI Color Steel Roll Forming Machine , Corrugated Roof Sheet Machine With Smooth Feed Plate
